Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | LP24V50 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 25.6V | Nominal Capacity: | 50Ah |
---|---|---|---|
Weight: | 13kg | Dimension: | 330*175*215mm |
Max Charge Current: | 50A | Max Discharge Current: | 50A |
Case: | ABS | Monotoring: | Bluetooth |
Warranty: | 2-3 Years | ||
High Light: | 50Ah Bluetooth Lithium Battery,24V Bluetooth Lithium Battery,LiFePO4 24 Volt Lithium Iron Phosphate Battery |

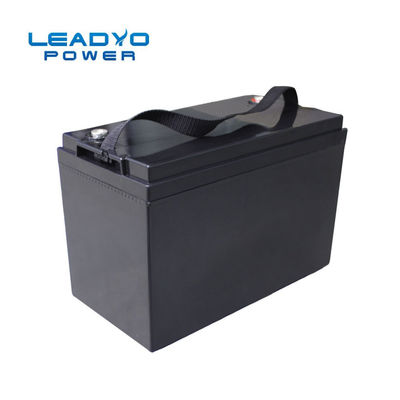

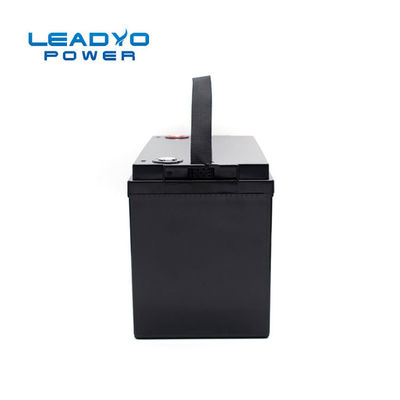

Bluetooth 24V 50Ah Lithium Iron Phosphate popular LiFePO4 battery
We are one stop solution manufacturer,we use our self-developed custom -made BMS ,Our BMS Technology (powered by Texas structure US or Seiko Japan) is designed for our battery. Together with our class a batteries (China Leading brand Cells ),Most customers choose our battery packs because our internal process is perfect, humanized, safe and our Advanced BMS system.we ensure that you have a good quality and competitive price.
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 25.6V | Terminal Type | M6 | |
Nominal Capacity | 50Ah | Weight | 13kg | |
Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 330*175*210mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
Peak Current | 100A | Recommended Charge Current | 10A - 25A | |
Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
