Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP36V100 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 36V | Nominal Capacity: | 100Ah |
|---|---|---|---|
| Weight: | 30kg | Dimension: | 525*234*220mm |
| Current: | 100A | Pluse Current: | 300A |
| Case: | Plastic Case | Terminal: | M8 |
| Warranty: | 2-3 Years | ||
| High Light: | 100Ah LiFePO4 Rechargeable Battery,36V LiFePO4 Rechargeable Battery,Deep Cycle Lifepo4 Forklift Battery |
||

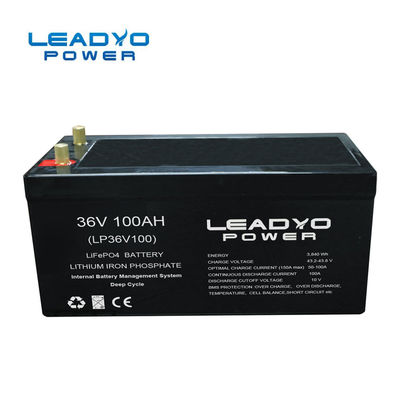

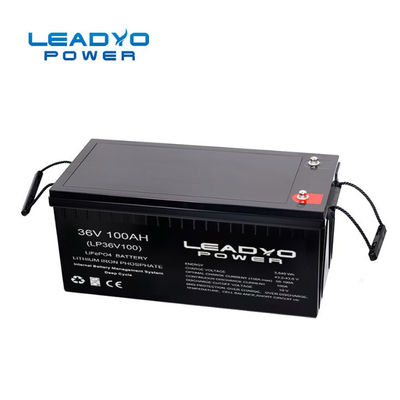

Deep cycle 36V 100Ah LiFePO4 rechargeable battery pack for forklift
LIFEPO4 Lithium Batteries are compatible with any application powered by Lead Acid, Gel or AGM Batteries. The integrated BMS (Battery Management System) installed in our Lithium batteries are programmed to tolerate superior abuse. LIFEPO4 Lithium Batteries can be operated for starting or deep cycle applications and can perform in both series and parallel connection. The BMS is engineered to maximize the performance of the battery by balancing the cells automatically and prevent any over-charging or over discharging. Any application that demands high quality, dependable and lightweight Lithium Batteries can be supported by our battery with its integrated BMS design.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 38.4V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 30kg | |
| Nominal Energy | 3840Wh | Case Dimension(L*W*H) | 525*234*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 700±100A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
| BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
