Brand Name: | LEADYO |
Model Number: | LP12V060 |
MOQ: | 1pcs |
Price: | Negotiable |
Packaging Details: | UN3480 Standard Export |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

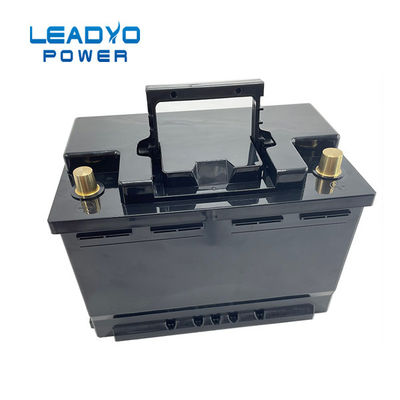

LiFePO4 Smart 12V 40Ah 1000CCA lithium ion car starter battery
Lithium Iron Phosphate Battery 12.8V 40Ah 1000CCA
Nominal Voltage 48V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 4800 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features:
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 12.8V | Terminal Type | M8 | |
Nominal Capacity | 60Ah | Weight | 7.5kg | |
Nominal Energy | 768Wh | Case Dimension(L*W*H) | L278*W176*H172mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
CCA | 1000A | Recommended Charge Current | 15A - 30A | |
Discharge pulse current | 1200±50A (31±10ms) | End of Charge voltage | 14.6V | |
BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
FAQ:
Q: Are you trading company or manufacturer?
A: We are Leadyo original factory from shenzhen , China.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest up to 48V.
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and thebalance before shipment
