Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V020 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12.8V | Nominal Capacity: | 20Ah |
|---|---|---|---|
| Weight: | 3kg | Dimension: | L244*W176*H197mm |
| Max Charge Current: | 20A | CCA: | 400CCA |
| Warranty: | 2 Years | ||
| High Light: | 20Ah 12V Lithium Trolling Motor Battery,400CCA Starting Battery For Trolling Motor,12V Lithium Trolling Motor Battery |
||

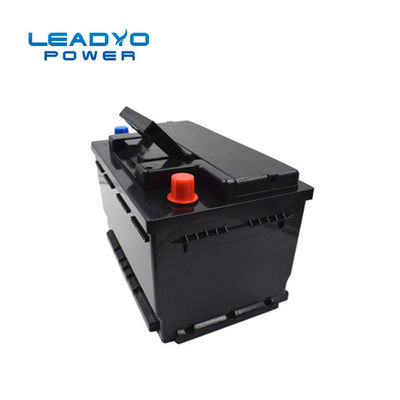

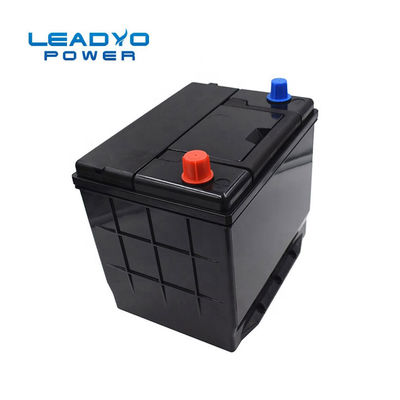

12V 20Ah 40Ah 400CCA starting batteries Trolling motor battery
Lithium Iron Phosphate Battery 12V 20Ah
Nominal Voltage 12.8V
Nominal Capacity 20 Ah
Capacity @ 4A 300 min
Energy 256 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features:
Higher Performance LifePO4 battery
100% Maintenance free
With Different sizes
Lithium Iron Phosphate(LiFePO4) is the safest type of lithium battery and a ready to go replacement and updrade from lead acid, AGM or gel.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | Screws | |
| Nominal Capacity | 20Ah | Weight | 3kg | |
| Nominal Energy | 256Wh | Case Dimension(L*W*H) | L244*W176*H197mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @4A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 20A | Max Charge Current | 20A | |
| CCA | 400A | Recommended Charge Current | 4A - 10A | |
| Discharge pulse current | 800±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q: Are you trading company or manufacturer?
A: We are Leadyo original factory from shenzhen , China.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest up to 48V.
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
