Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Voltage: |
12.8V |
Nominal Capacity: |
200Ah |
Weight: |
21kg |
Dimension: |
345*190*245mm |
Continuous Current: |
150A |
Peak Current: |
500A |
Warranty: |
2 Years |
Voltage: |
12.8V |
Nominal Capacity: |
200Ah |
Weight: |
21kg |
Dimension: |
345*190*245mm |
Continuous Current: |
150A |
Peak Current: |
500A |
Warranty: |
2 Years |

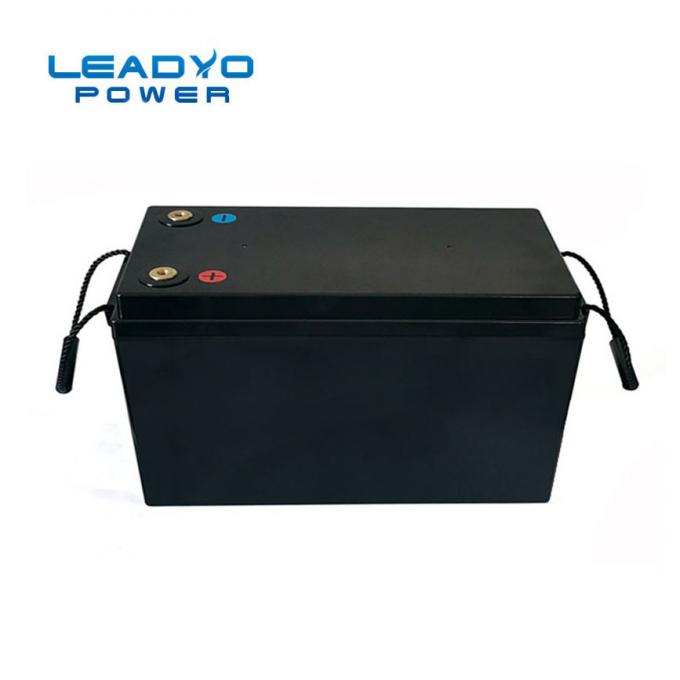

12v 200ah lithium iron phosphate LiFePO4 battery for RV camper
Lithium Iron Phosphate Battery 12.8V 400Ah
Nominal Voltage 12.8V
Nominal Capacity 200 Ah
Capacity @ 40A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
Which is a company deeply focused on all aspects of producing new energy power storage systems and new energy vehicle power systems by fully and carefully addressing research, development, design, manufacturing and sales. Products include Cylindrical, Prismatic and Soft Package with Lithium Iron Phosphate Series, NCM Series and Polymer Battery Series and we are committed to providing High performance, High Quality cost effective product solutions with comprehensive lifecycle service of products.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 345*190*245mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
