Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V050 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Voltage: | 12.8V | Capacity: | 50Ah |
|---|---|---|---|
| Weight: | 6.9kg | Dimension: | 197*166*168mm |
| Current: | 50A | Terminal: | M6 |
| Warranty: | 2 Years | ||
| High Light: | Bluetooth 12V RV Camper Battery,50Ah RV Camper Battery,M6 Terminal Lithium Bluetooth Battery |
||

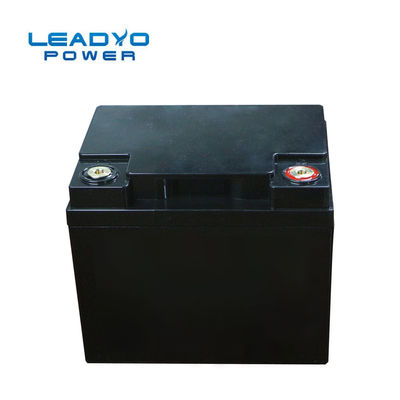

Bluetooth lithium rv battery 12V 50Ah lithium ion camper battery
Lithium Iron Phosphate Battery 12.8V 50Ah
Nominal Voltage 12.8V
Nominal Capacity 50 Ah
Capacity @ 4A 300 min
Energy 560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Key Features :
Built In Smart BMS
Maintenance-Free ,Absorbent Glass Mat Technology
Low Self Discharge
Long Designed service Life ,Deep Cycles
Excellent Discharge Performance
Environment Friendliness
Wide suitability of ambient temperature range
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M6 | |
| Nominal Capacity | 50Ah | Weight | 6.8kg | |
| Nominal Energy | 640Wh | Case Dimension(L*W*H) | 197*166*168mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @25A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 150A | Recommended Charge Current | 10A - 20A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
