Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V080
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V 12V |
Nominal Capacity: |
80Ah |
Energy: |
1024Wh |
Weight: |
10kg |
Dimension: |
260*168*209mm |
Max Charge Current: |
100A |
Peak Current: |
300A/3S |
Terminal: |
M8 |
Nominal Voltage: |
12.8V 12V |
Nominal Capacity: |
80Ah |
Energy: |
1024Wh |
Weight: |
10kg |
Dimension: |
260*168*209mm |
Max Charge Current: |
100A |
Peak Current: |
300A/3S |
Terminal: |
M8 |

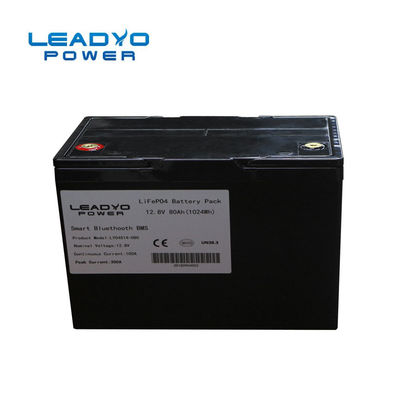

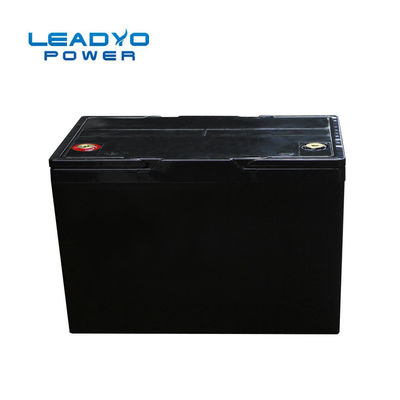

Deep cycle LiFePO4 battery 12V 80Ah marine boat lithium battery
Lithium Iron Phosphate Battery 12.8V 80Ah
Nominal Voltage 12.8V
Nominal Capacity 80 Ah
Capacity @ 16A 300 min
Energy 1024Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
Key Features :
♦ With Smart BMS with full protection
♦Maintenance-Free ,Absorbent Glass Mat Technology
♦Low Self Discharge
♦Long Designed service Life ,Deep Cycles
♦Excellent Discharge Performance
♦Environment Friendliness
♦Wide suitability of ambient temperature range
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 80Ah | Weight | 10kg | |
| Nominal Energy | 1024Wh | Case Dimension(L*W*H) | 260*168*209mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @16A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 16A - 40A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
Q: Does Leadyo support door to door shipping?
A: Yes. Normally if battery unit weight is below 30kg, we can delivery it to the destination address via Air Express. If battery unit weight is above 30kg, we delivery it via sea shipping. If you want to us to help you to make custom clearance, we would like to do that.
Q.: Can we do series and parallel connection by ourselves (12 volt battery)?
A.: Yes. But, we should pay attention to below tips:
a.: Connect the same spec. battery pack. Please don't mix them.
b.: The voltage difference of the connection batteries should be 50mV below.
c.: Support 4 series OR unlimit parallel connection. Please don't do series and parallel connection at the same time.
d. If we don't obey the tips, It may cause battery damaged or shorten the battery lifespan.
Q: How can I resell lithium batteries well in my market ?
A.: Do market research, set your focus application field,learn more knowledge about lithium battery. build your own brand. We can work together with you to explode the market.
Q. What is your warranty?
A: Our standard warranty is 2 years. Our battery lifespan can be used for at least 8 years for normal 1 cycles per day. We have a complete warranty policy documents, please feel free to contact us to get it.
......
