Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP24V100 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 25.6V | Nominal Capacity: | 100Ah |
|---|---|---|---|
| Weight: | 21kg | Dimension: | 525*234*220mm |
| Continuous Current: | 100A | Peak Current: | 300A For 10S |
| Case: | ABS/Black | Terminal: | M8 |
| High Light: | Bluetooth 24V 100ah Lithium Ion Battery,24V 100ah Lithium Ion Battery,LiFeP04 Lithium Ion Boat Battery |
||

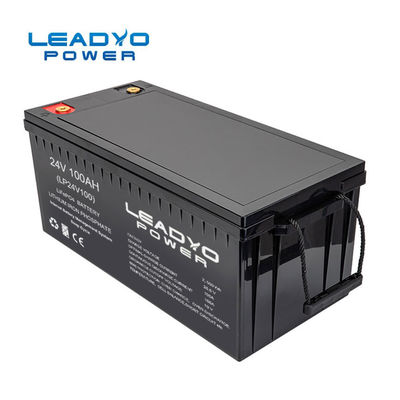

Bluetooth 24V 100Ah Lithium Battery LiFeP04 Waterproof E-Boat Yachts
Lithium Iron Phosphate Battery24V 100Ah
Nominal Voltage 25.6V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 525*234*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q1. Can I order samples?
Answer: Yes, we welcome to order samples to test and check the quality.
Q2. What about the delivery time?
Answer: Samples will take 1-2 weeks, and mass production time will take 3-5 weeks, depending on the order quantity.
Q3. Do you have a minimum order quantity limit?
Answer: Yes, we have a MOQ for mass production, which depends on different part numbers. 1~10pcs sample order. The minimum order quantity is 1pc which can be used for sample inspection.
Q4. How do you ship the goods and how long will it take to arrive?
Answer: It usually takes 5 to 7 days to arrive. Air and sea are also optional.
Q5. How to place an order?
Answer: Let us know your requirements or applications first. Secondly, we quote according to your request or suggestion. We will arrange production after you confirm.
Q6. Can I print my logo on the product?
Answer: Yes. Please inform us formally before production, and first confirm the design based on our samples.
