| Brand Name: | LEADYO |
| Model Number: | LP48V050 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Bluetooth 48v 50ah smart lithium iron phosphate battery for golf carts

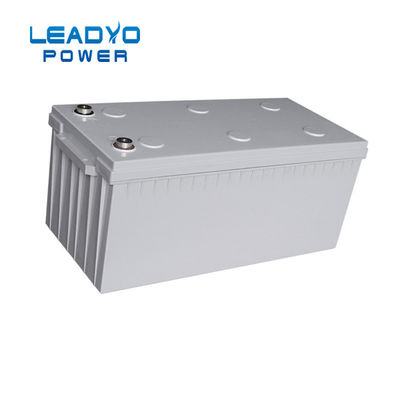

48V 50Ah LiFePO4 Battery
Nominal Voltage 51.2V
Nominal Capacity 50 Ah
Capacity @ 5A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
Which is a company deeply focused on all aspects of producing new energy power storage systems and new energy vehicle power systems by fully and carefully addressing research, development, design, manufacturing and sales. Products include Cylindrical, Prismatic and Soft Package with Lithium Iron Phosphate Series, NCM Series and Polymer Battery Series and we are committed to providing High performance, High Quality cost effective product solutions with comprehensive lifecycle service of products.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 50Ah | Weight | 25kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 525*234*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 100A | Recommended Charge Current | 10A - 20A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
|
