Brand Name: | LEADYO |
Model Number: | LP48V100 |
MOQ: | 1pcs |
Price: | Negotiable |
Packaging Details: | UN3480 Standard Export |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

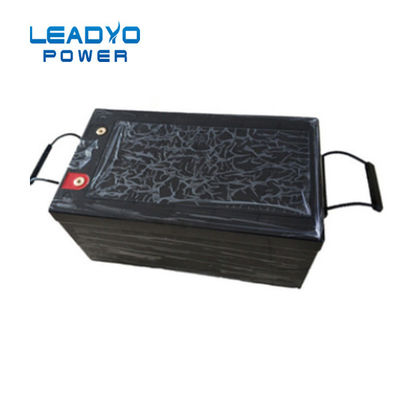

Bluetooth 48v 100ah lifepo4 5.12kwh high capacity lithium ion battery
Lithium Iron Phosphate Battery 48V 100Ah
Nominal Voltage 48V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 4800 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
If you’re looking for energy storage for your residential solar system for grid-tie or off-grid, this 48V lithium battery is a great option. Deep cycle batteries are a key component in off-grid solar electric systems, and for grid-tie or emergency backup power systems with or without solar. For renewable energy systems, the 48V100 battery is compatible with Outback, Schneider Electric, Magnum, Morningstar and many other leading brands of inverters and solar charge controllers.
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 51.2V | Terminal Type | M8 | |
Nominal Capacity | 100Ah | Weight | 41kg | |
Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 520*267*220MM | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
Peak Current | 500A | Recommended Charge Current | 20A - 50A | |
Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
FAQ
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q: Do you provide after-sales serive?
A: Yes,the warranty is 24 months, if any quality problems on our side in this period, we can send new one as replacement.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
![]() |
