| Brand Name: | LEADYO |
| Model Number: | LP12V075 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

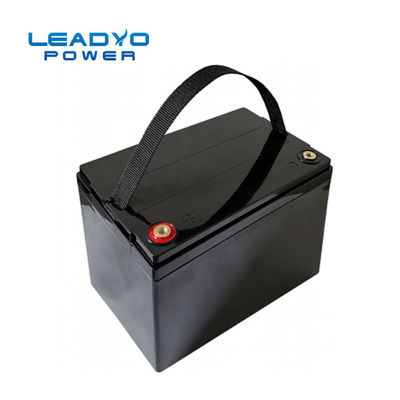

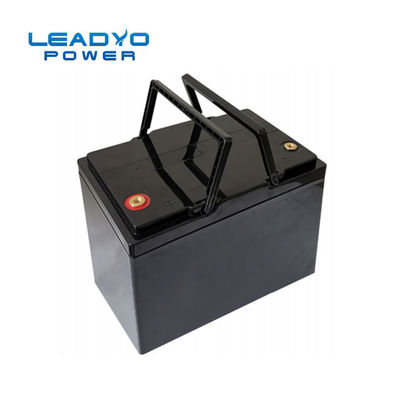

LiFePO4 ACCU 75Ah 12v lifepo4 battery Bluetooth marine battery pack
LIFEPO4 Lithium Batteries are compatible with any application powered by Lead Acid, Gel or AGM Batteries. The integrated BMS (Battery Management System) installed in our Lithium batteries are programmed to tolerate superior abuse. LIFEPO4 Lithium Batteries can be operated for starting or deep cycle applications and can perform in both series and parallel connection. The BMS is engineered to maximize the performance of the battery by balancing the cells automatically and prevent any over-charging or over discharging. Any application that demands high quality, dependable and lightweight Lithium Batteries can be supported by our battery with its integrated BMS design.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M6 | |
| Nominal Capacity | 75Ah | Weight | 9.5kg | |
| Nominal Energy | 960Wh | Case Dimension(L*W*H) | 229*138*208mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @15A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 80A | Max Charge Current | 80A | |
| Peak Current | 200A | Recommended Charge Current | 15A - 38A | |
| Discharge pulse current | 250±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
