Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V090
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
90Ah |
Weight: |
10kg |
Dimension: |
307*169*208mm |
Continuous Current: |
100A |
Bluetooth: |
Can With Bluetooth |
Case: |
ABS |
Ip Rating: |
IP66 |
Warranty: |
24 Months |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
90Ah |
Weight: |
10kg |
Dimension: |
307*169*208mm |
Continuous Current: |
100A |
Bluetooth: |
Can With Bluetooth |
Case: |
ABS |
Ip Rating: |
IP66 |
Warranty: |
24 Months |

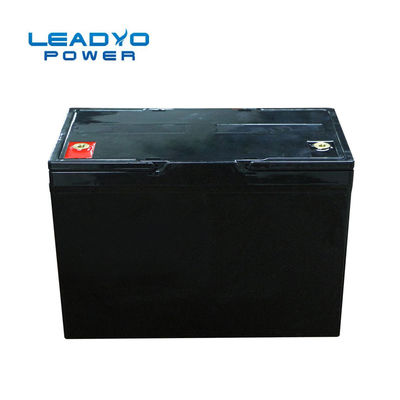

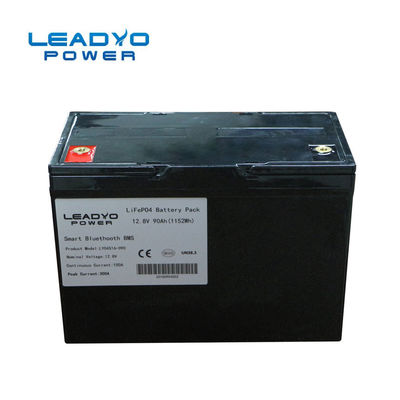

90Ah 12v lifepo4 battery pack Lithium Ion Trolling Battery with BMS
Leadyo is a technical manufacturer specializing in the development and production of BMS and lithium-ion batterieswhich has more than 15 years of industry experience in China, focusing on the application of lithium ion, lithium iron phosphate, and lithium titanate batteries.The company was established in 2007, has passed ISO9001: 2015 quality system certification. Products are widely used in electric bicycles, electric motorcycles, low-speed vehicles, golf carts, patrol cars, AGVs, UPS, base stations, home energy storage, medical equipment and various customized products. Our company will provide the best for customer needs of battery energy storage solutions.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 90Ah | Weight | 12kg | |
| Nominal Energy | 11520Wh | Case Dimension(L*W*H) | 307*169*208mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @18A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 18A - 45A | |
| Discharge pulse current | 350±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
