Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP48V150 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 25.6V | Nominal Capacity: | 150Ah |
|---|---|---|---|
| Weight: | 37kg | Dimension: | 520*267*220mm |
| Working Current: | 150A | Peak Current: | 500A/3S |
| Monitoring: | Bluetooth/ LCD Meter | ||
| High Light: | Bluetooth Monitoring 24V Lifepo4 Battery,150Ah 24V Lifepo4 Battery,150Ah 24V Electric Boat Battery Pack |
||

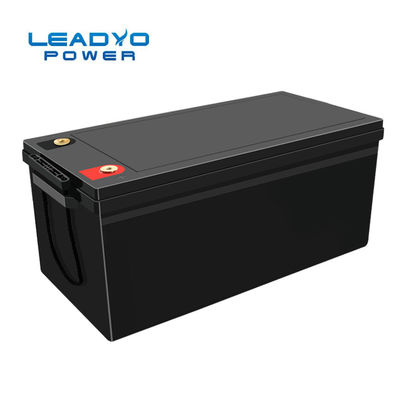

High capacity 150Ah 24V 12 volt lifepo4 battery for electric boat
Lithium Iron Phosphate Battery 24V 150Ah
Nominal Voltage 25.6V
Nominal Capacity 150 Ah
Capacity @ 30A 300 min
Energy 3840 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Why Choose LiFePo4 Batteries Rather Than Lead Acid Batteries ?
1.Longer battery life – 5000times life cycle @60%DOD, 5 times more than lead acid batteries
2.Low self-discharge <3% per months
3.Free of charge memory
4.Steady discharge and charge performance.
5.Outstanding thermal stability
6.Wide temperature performance
7.Short circuit protection
8.Over charge and over discharge protection
9.Over current protection
10.Easy carrying and installation - can be carried and installed in any direction
11.Fast charging - about 4~6 hours to be fully charged
12.Lighter weight - 1/2~1/4 in weight compared to LA batteries
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 150Ah | Weight | 37kg | |
| Nominal Energy | 7680Wh | Case Dimension(L*W*H) | 520*267*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @30A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 30A - 75A | |
| Discharge pulse current | 700±10A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
