Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP24V200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Voltage: |
25.6V |
Capacity: |
200Ah |
Weight: |
42kg |
Dimension: |
550*305*260mm |
Continuous Current: |
150A-200A |
Peak Current: |
500A |
Case: |
Metal Case |
Voltage: |
25.6V |
Capacity: |
200Ah |
Weight: |
42kg |
Dimension: |
550*305*260mm |
Continuous Current: |
150A-200A |
Peak Current: |
500A |
Case: |
Metal Case |

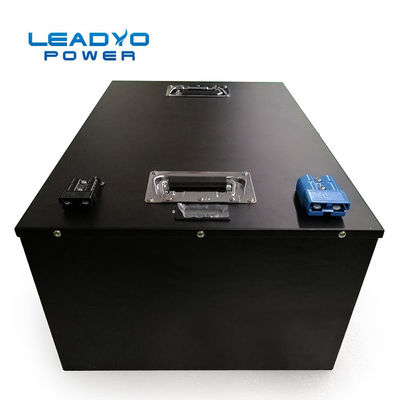

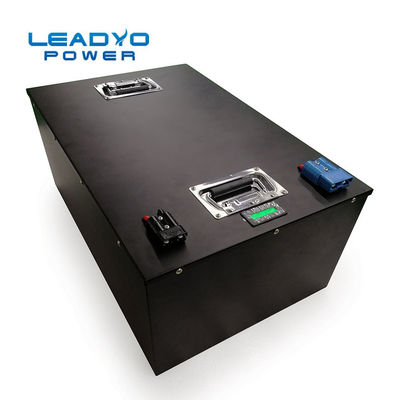

Smart 24V 200Ah Lithium LiFePO4 rechargeable li ion battery pack
Lithium Iron Phosphate Battery 25.6V 200Ah
Nominal Voltage 25.6V
Nominal Capacity 200 Ah
Capacity @ 40A 300 min
Energy 5120 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features of 25.6V 200Ah Battery
This 24V 100Ah lithium iron phosphate battery is perfect in many applications, including marine and electric vehicles. It maintains consistent power and is equipped with an M8 terminal type and built-in overcharge protection. All Leadyo LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Leadyo 24V Batteries can series up to 48V battery and parallel in unlimit.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 41kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 550*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
