Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP24V300 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 24V | Nominal Capacity: | 300Ah |
|---|---|---|---|
| Weight: | 65kg | Dimension: | L705*W305*H260mm |
| Continuous Current: | 200A | Peak Current: | 500A |
| Case: | Metal Case | ||
| High Light: | 300Ah 24V Lifepo4 Battery,LCD Monitoring 24V Lifepo4 Battery,MSDS 24V Lifepo4 Battery Pack |
||

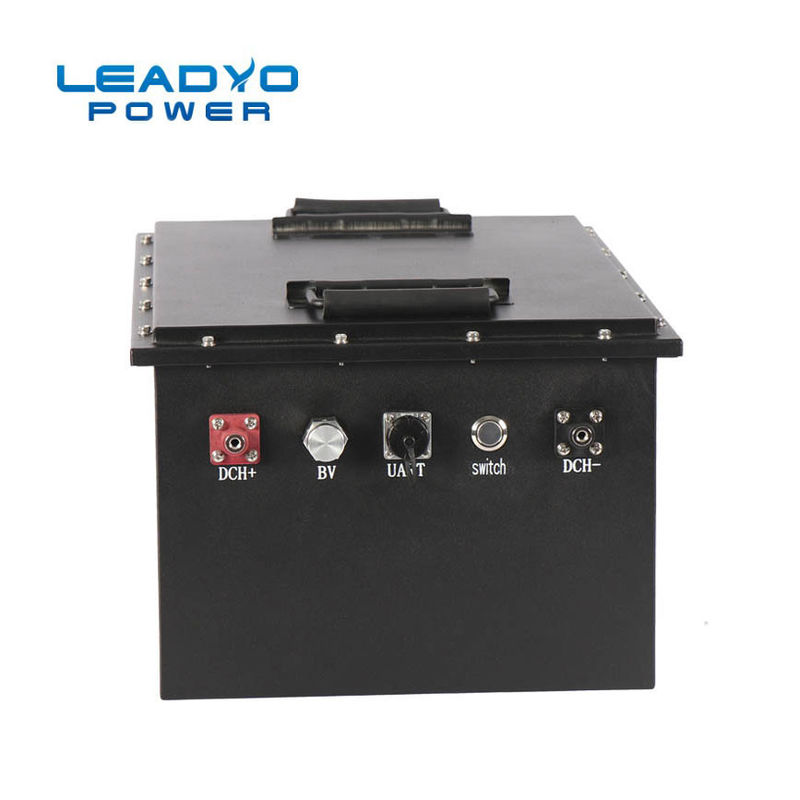

24V 300Ah LiFePO4 battery built in LCD monitoring systems for solar application
Lithium Iron Phosphate Battery 24V 300Ah
Nominal Voltage 25.6V
Nominal Capacity 300 Ah
Capacity @ 60A 300 min
Energy 7680 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
Longer battery life – 5000times life cycle @60%DOD, 5 times more than lead acid batteries
Free of charge memory
Steady discharge and charge performance.
Outstanding thermal stability
Wide temperature performance
Short circuit protection
Over charge and over discharge protection
Over current protection
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 300Ah | Weight | 65kg | |
| Nominal Energy | 7680Wh | Case Dimension(L*W*H) | 705*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 500A | Recommended Charge Current | 60A - 150A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
