Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP36V075
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
36V |
Nominal Capacity: |
75Ah |
Weight: |
28kg |
Dimension: |
520*267*220MM |
Current: |
80A |
Pluse Current: |
150A |
Terminal: |
M8 |
Nominal Voltage: |
36V |
Nominal Capacity: |
75Ah |
Weight: |
28kg |
Dimension: |
520*267*220MM |
Current: |
80A |
Pluse Current: |
150A |
Terminal: |
M8 |

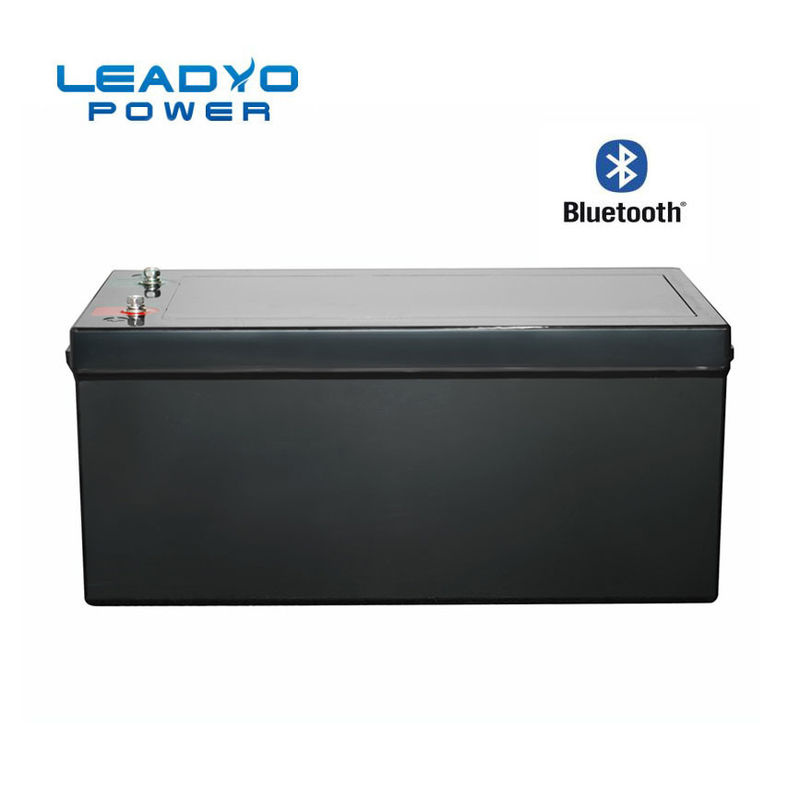

Trolling Motor lifepo4 36V 75Ah lithium iron phosphate deep cycle battery
Lithium Iron Phosphate Battery 36V 75Ah
Nominal Voltage 38.4V
Nominal Capacity 75 Ah
Capacity @ 15A 300 min
Energy 2880 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
Replace your heavy AGM trolling motor batteries with this single 36v LiFePO4 Battery. This 22kg battery will eliminate up to 50bs from your boat. the battery passed IP66 Tested, can use on baot well.LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency. Bluetooth With Bluetooth cell voltages, temperature and alarm status can be monitored. Very useful to localize a (potential) problem, such as cell imbalance.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 38.4V | Terminal Type | M8 | |
| Nominal Capacity | 70Ah | Weight | 28kg | |
| Nominal Energy | 2688Wh | Case Dimension(L*W*H) | 520*267*220MM | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 80A | Max Charge Current | 80A | |
| Peak Current | 150A | Recommended Charge Current | 14A - 30A | |
| Discharge pulse current | 200±30A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
| BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
