Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V050
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
51.2V |
Nominal Capacity: |
50Ah |
Weight: |
28kg |
Dimension: |
480*420*133.5mm |
Max Charge Current: |
30A |
Max Discharge Current: |
50A |
CaseABS Case: |
Metal Case |
Communication: |
RS232 Or RS485 |
Cycles: |
Over 5000 Times |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
50Ah |
Weight: |
28kg |
Dimension: |
480*420*133.5mm |
Max Charge Current: |
30A |
Max Discharge Current: |
50A |
CaseABS Case: |
Metal Case |
Communication: |
RS232 Or RS485 |
Cycles: |
Over 5000 Times |

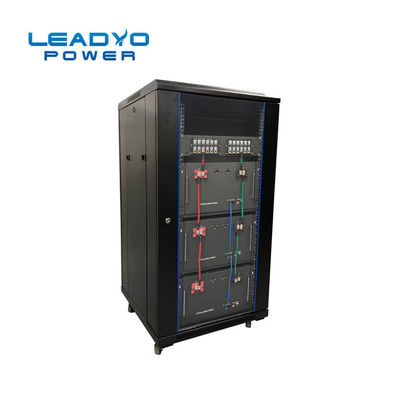

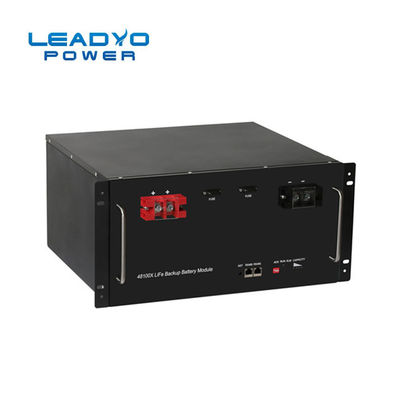

2.5KW 50Ah 48v lithium battery pack solar energy storage battery
Features of the 48V 50Ah Battery
-Adopt high safety, long life, excellent performance LiFePO4 cells;
-Support up to 1C continuous discharge;
-Over 3000 times of cycle life;
-Intelligent BMS to ensure a safe reliable operation; -Parallel on cabinet level available;
-Multiple communications including RS485, RS232;
-Modular rack design for easier installation and smaller landscape.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 50Ah | Weight | 25kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 480*420*133.5mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 30A | Max Charge Current | 30A | |
| Peak Current | 50A | Recommended Charge Current | 6A - 15A | |
| Discharge pulse current | 50±5A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
