Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V020
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
51.2V |
Nominal Capacity: |
20Ah |
Weight: |
10kg |
Dimension: |
Customized |
Max Charge Current: |
50A |
Max Discharge Current: |
50A |
Case: |
Metal Case |
Cycle Life: |
Over 5000 Times |
Terminal: |
M8 |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
20Ah |
Weight: |
10kg |
Dimension: |
Customized |
Max Charge Current: |
50A |
Max Discharge Current: |
50A |
Case: |
Metal Case |
Cycle Life: |
Over 5000 Times |
Terminal: |
M8 |

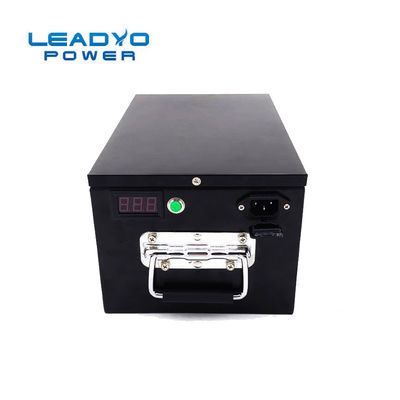

LiFePO4 10Ah 20Ah 48 volt lithium ion battery for Electric Pallet Truck
Features of the 48V 20Ah battery
High Power 48V 20Ah Lithium Battery Pack
Long cycle life up to 2000 life cycles
Excellent Performance on safety
High Temperature Resistance
Sanyo Panasonic Samsung Cells for your Selection
Custom Battery Packs for EV(Electric vehicle), E-bike, E-motorbike,Rickshaw, Yacht, UPS System, Energy storage system, Mobile Tower Station, etc.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 20Ah | Weight | 10kg | |
| Nominal Energy | 1024Wh | Case Dimension(L*W*H) | customized | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case/ PVC | |
| Capacity | @4A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 20A | Max Charge Current | 20A | |
| Peak Current | 20A | Recommended Charge Current | 4A - 10A | |
| Discharge pulse curret | 50±10A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
