Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | LP24V060 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 25.6V | Nominal Capacity: | 60Ah |
---|---|---|---|
Weight: | 15kg | Dimension: | 330*175*215mm |
Max Charge Current: | 100A | Max Discharge Current: | 100A |
CaseABS Case: | Metal Case | Ip Rating: | IP66 |
Application: | Floor Machine/AGV/Robot | ||
High Light: | Lightweight 24V 60ah Lithium Battery,AGV 24V 60ah Lithium Battery,24V AGV LiFePO4 Battery |

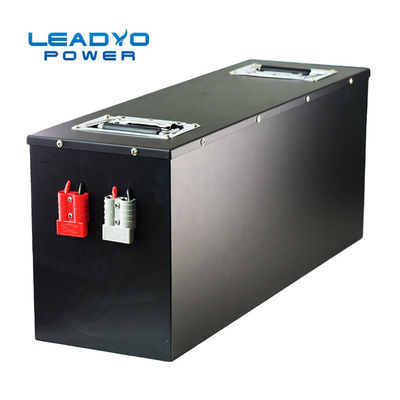

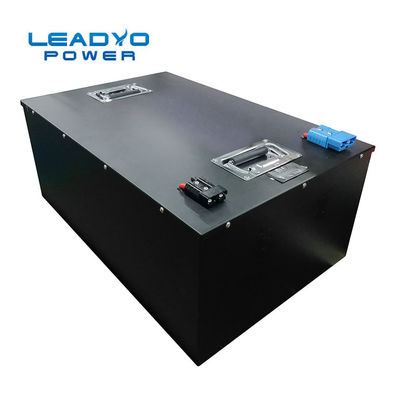

Lifepo4 24V 60Ah Batterie Lithium LiFePO4 Battery Pack for agv
The LifePo4 battery a safer, more lightweight alternative to lead-acid in your marine, solar, RV,Golf car or other applications. It maintains a consistent power and is equipped and a built-in smart bluetooth Communication battery management system (BMS). it is very popular now.The LifePo4 battery also can in parallel and in series.it is easy work.
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 25.6V | Terminal Type | M6 | |
Nominal Capacity | 60Ah | Weight | 16kg | |
Nominal Energy | 1536Wh | Case Dimension(L*W*H) | 330*175*210mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
Peak Current | 300A | Recommended Charge Current | 12A - 30A | |
Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
