Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP48V100 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 51.2V/48V | Nominal Capacity: | 100Ah |
|---|---|---|---|
| Weight: | 42kg | Dimension: | 550*305*260mm |
| Max Charge Current: | 100A | Max Discharge Current: | 100A |
| Cycle Life: | Over 5000 Times | ||
| High Light: | 100Ah Floor Cleaning Machine Battery,AGV Floor Cleaning Machine Battery,LiFepo4 AGV Battery Pack |
||

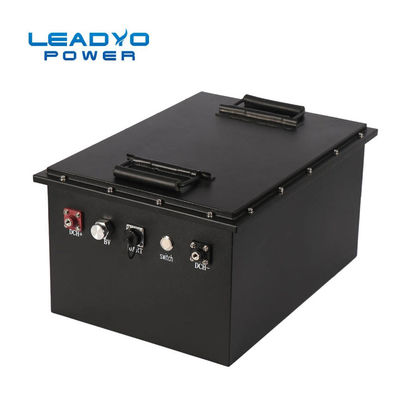

Smart AGV Robot 48V 100Ah LiFepo4 energy power deep cycle battery
Lithium Iron Phosphate Battery 48V 100Ah
Nominal Voltage 51.2V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 5120 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Can with Bluetooth/RS485/RS232/SMbus/I2C communuctaion
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 42kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 550*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. How about the quality&warranty time?
100% full inspection and All products provided 24 months warranty.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How about the lead time?
samples 5-10days, bulk order 3-5 weeks
4.How to get a quote?
Please contact with us sales5@leadyo-battery.com
5.Do you accept OEM?
