Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP24V100 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 25.6V | Nominal Capacity: | 100Ah |
|---|---|---|---|
| Weight: | 21kg | Dimension: | 480*170*240mm |
| Continuous Current: | 100A | Auto Heating: | Can Customized |
| Case: | Plastic Case | ||
| High Light: | Marine Low Temperature LiFePO4 Battery,24V 100AH Low Temperature LiFePO4 Battery,24V 100AH Lithium Battery |
||

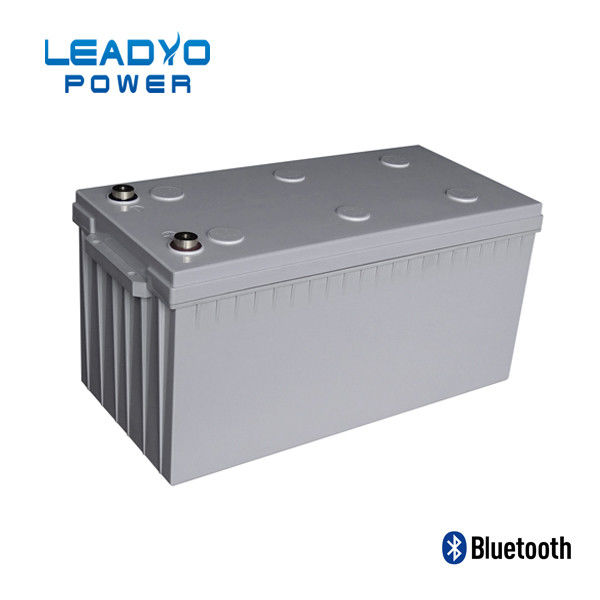

Low temperature 24V 100AH Lithium battery self heating for Marine Solar energy
Lithium Iron Phosphate Battery 24V 100Ah
Nominal Voltage 25.6V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 2560Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
24V 100Ah with Self-heating Function
Start heating : 0°C
Stop heating +5°C
can with Bluetooth monitoring the status of the battery
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 480*168*240mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 14A - 25A | |
| Discharge pulse current | 350±30A (31±10ms) | End of Charge voltage | 28.8V±0.4V | |
| BMS Low Voltge Cut-off | 20V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Samples is avaliable and welcome.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 7 working days for sample order, 20- 30 working days for mass order.
Welcome you to visit our production base and to check our production lines!
