Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP48V060 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 51.2V | Nominal Capacity: | 60Ah |
|---|---|---|---|
| Weight: | 30kg | Dimension: | 480*420*133.5mm |
| Max Charge Current: | 30A | Max Discharge Current: | 50A |
| CaseABS Case: | Metal Case | ||
| High Light: | 60ah Bluetooth Lithium Battery,LEADYO Caravan Bluetooth Lithium Battery,48V Lithium Rechargeable Battery |
||

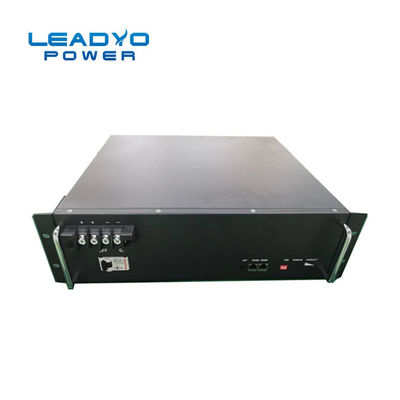

Bluetooth Lithium Battery 48v 60ah lithium Rechargeable Battery for RV Caravan
Features of the 48V 60Ah Battery
- Adopt high safety, long life, excellent performance LiFePO4 cells;
- Support up to 1C continuous discharge;
- Over 5000 times of cycle life;
- Intelligent BMS to ensure a safe reliable operation; -Parallel no limit
- Multiple communications including RS485, RS232;Bluetooth

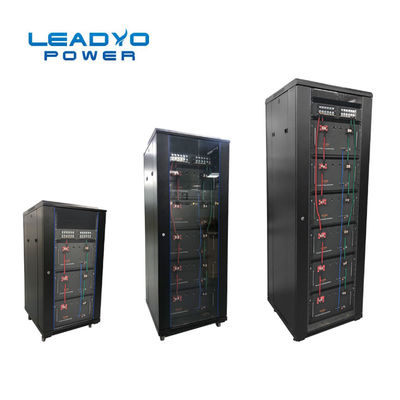

- Modular rack design for easier installation and smaller landscape.
1. High energy cell. -Advanced high capacity and long life span
2. Easy installation-Simple module structure
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 60Ah | Weight | 30kg | |
| Nominal Energy | 3072Wh | Case Dimension(L*W*H) | 480*420*133.5mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 30A | Max Charge Current | 30A | |
| Peak Current | 50A | Recommended Charge Current | 6A - 15A | |
| Discharge pulse current | 50±5A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
