Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V050 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12.8V | Nominal Capacity: | 50Ah |
|---|---|---|---|
| Energy: | 640Wh | N.W: | 6.5kg |
| Size: | 197*166*168mm | Handle Current: | 50A |
| Connector: | M6 | ||
| High Light: | LEADYO 50ah Deep Cycle Lithium Battery,12 Volt 50ah Deep Cycle Lithium Battery,Lifepo4 Battery For Solar Storage |
||

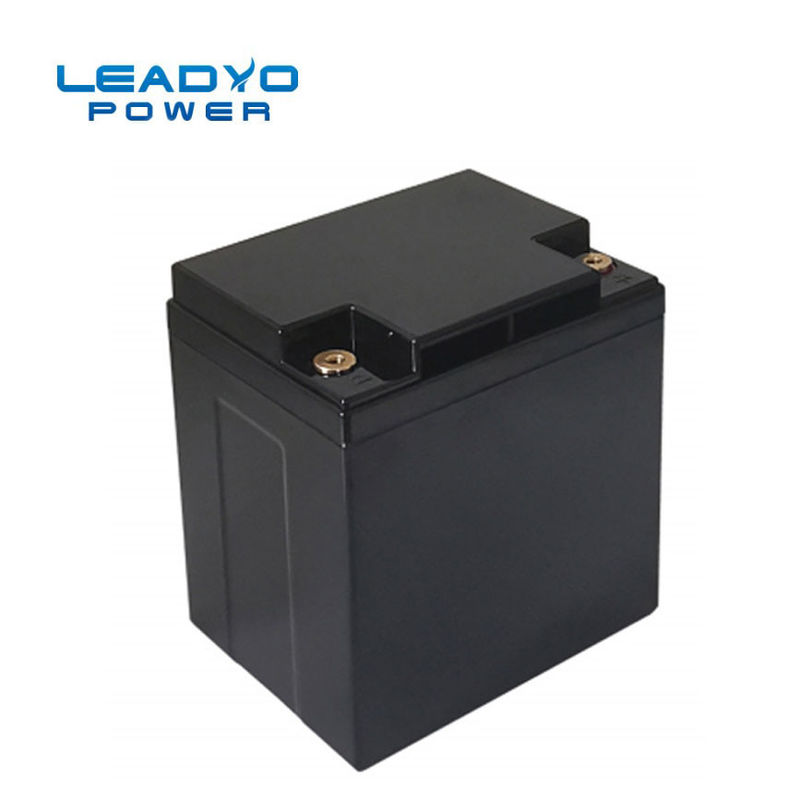

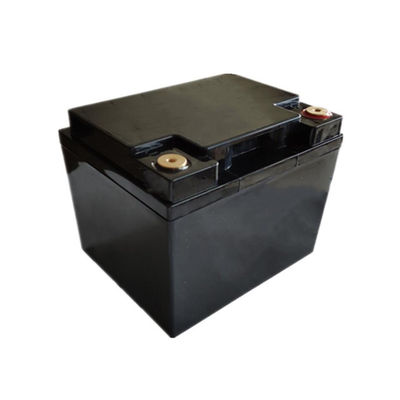

Lifepo4 battery 12v 50ah Deep Cycle lithium battery for solar storage
Lifepo4 battery 12v 50ah
Nominal Voltage 12.8 V
Nominal Capacity 50 Ah
Capacity @ 10A 300 min
Energy 560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features
The lithium iron phosphate battery cells are connected in series and parallel, and monitored and protected by the BMS module, which is widely used in various fields. From small electronic batteries to large energy storage and power drive batteries used in solar systems, golf carts, sailboats, forklifts, robots, medical equipment, electric vehicles,backup power supplies, UPS and other applications.lithium iron phosphate batteries are available in all shapes and sizes. And that renders them to be the perfect option for power needs irrespective of the size of the application devices.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M6 | |
| Nominal Capacity | 50Ah | Weight | 6.8kg | |
| Nominal Energy | 640Wh | Case Dimension(L*W*H) | 197*166*168mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @25A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 150A | Recommended Charge Current | 10A - 20A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
