| Brand Name: | LEADYO |
| Model Number: | LP48V50 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

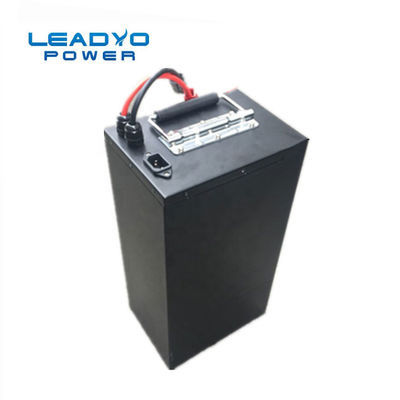

Flexible Size 48V 50Ah 100ah 200ah lithium deep cycle battery for solar power
Lithium Iron Phosphate Battery 51.2V/50Ah)
Nominal Voltage 51.2 V
Nominal Capacity 50 Ah
Capacity @ 10A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Application:
Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 50Ah | Weight | 25kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 400*198*235mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 150A | Recommended Charge Current | 10A - 25A | |
| Discharge pulse current | 180±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v/ cell | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
