Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V100 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12.8V | Nominal Capacity: | 100Ah |
|---|---|---|---|
| Weight: | 10.5kg | Size: | 306*173*225mm |
| Energy: | 1280Wh | Work Current: | 150A |
| Monitoring: | Bluetooth Or LCD Display | ||
| High Light: | 100Ah 12 Volt RV Camper Battery,RV Camper Battery 1280Wh,100Ah 12 Volt Group 27 Deep Cycle Battery |
||

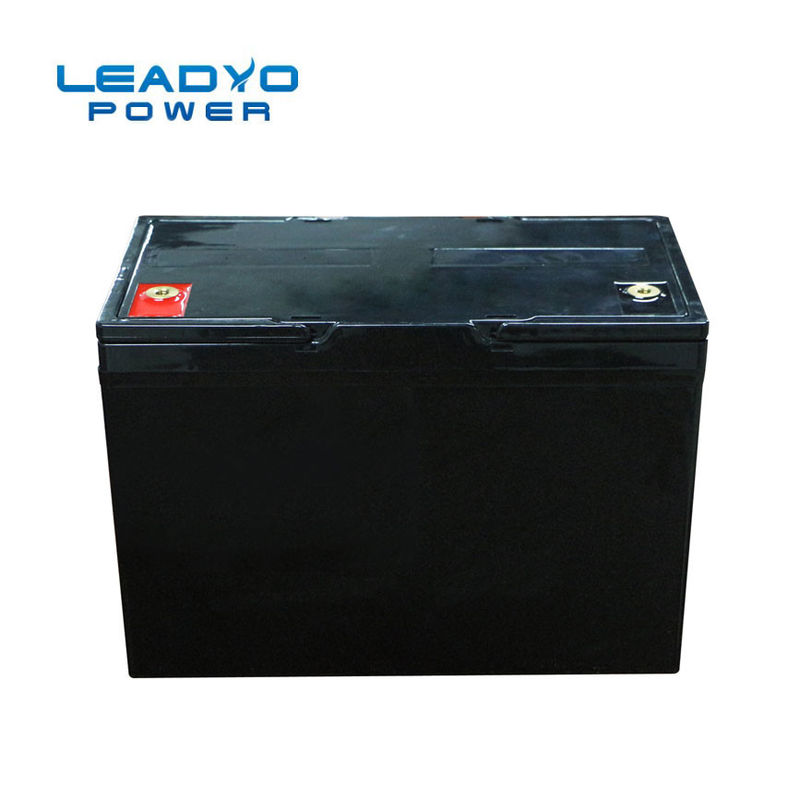

100Ah 12 volt rv battery deep cycle camper battery with group size 27
Lithium Iron Phosphate Battery (12.8V/100Ah) with 27 Group Size
Nominal Voltage 12.8 V
Nominal Capacity 100 Ah
Capacity @20A 300 min
Energy 1280 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features
Leadyo deep cycle batteries are specially designed to offer off-grid power. They are the perfect choice for RVs since most of the time you will be spending in remote areas where a dependable source of energy comes in handy. The sealed and maintenance-free design is suitable for recreation purposes such as RVing.
The battery also has a non-spillable design that allows it to be used in areas requiring the use of such batteries. If you choose this battery, you will always be on the safe side no matter the location of your adventure.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 10.5kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 306*173*225mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. How about the quality&warranty time?
100% full inspection and All products provided 24 months warranty.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How about the lead time?
samples 5-10days, bulk order 3-5 weeks
4. How long of the shipping time?
It always needs 3-10 days by express such as DHL and UPS, 20-30 days by sea.
5. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided.
