| Brand Name: | LEADYO |
| Model Number: | LP12V075 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
12v lifepo4 battery Marine lifepo4 batteries 12V 75Ah 100Ah 200Ah

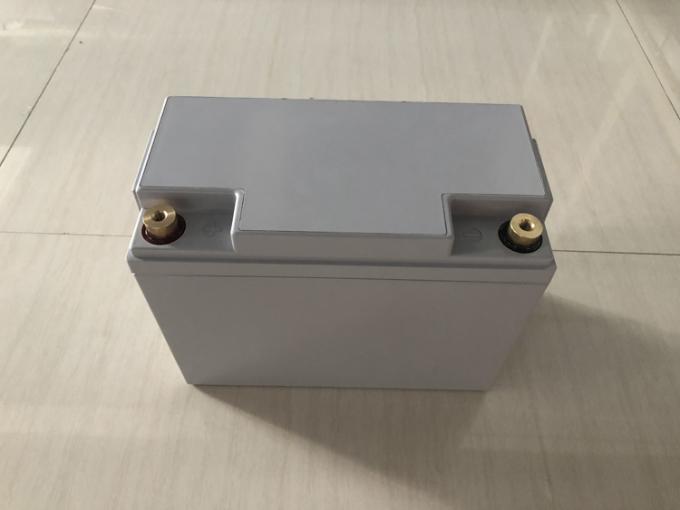

Lithium Iron Phosphate Battery (12.8V/75Ah)
Nominal Voltage 12.8 V
Nominal Capacity 75 Ah
Capacity @15A 300 min
Energy 960 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M6 | |
| Nominal Capacity | 75Ah | Weight | 9.5kg | |
| Nominal Energy | 960Wh | Case Dimension(L*W*H) | 229*138*208mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @15A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 80A | Max Charge Current | 80A | |
| Peak Current | 200A | Recommended Charge Current | 15A - 38A | |
| Discharge pulse current | 250±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Do you have in stock ?
Many models have in Stock,please contact with sales
Do you have any certification ?
Yes ,we have CE and UN38.3 ,MSDS
Are you a manufacturer or a trader?
We are BMS and bluetooth system original manufacture,We will provide professional battery solutions For you
How do you send battery ?
via UPS,FEDEX ,sea or air freight.etc
How long willl it take for delivery?
12-15 workdays after received your payment .
Do you charge for bluetooth apps ?
No ,it is free .
|
