Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | LP12V100 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 12.8V | Nominal Capacity: | 100Ah |
---|---|---|---|
Weight: | 14kg | Dimension: | 600(L) X 65(W) X 275(H) Mm |
Current: | 100A | Application: | RV,4WD, Camper, Marine |
Terminal: | Anderson | ||
High Light: | LEADYO Slimline Lithium Deep Cycle Battery,Slimline Lithium Deep Cycle Battery 12V,100Ah Slim Line AGM Battery |

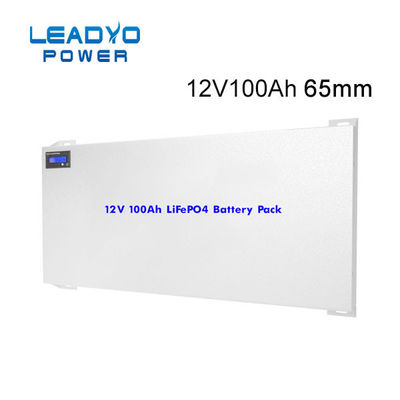

12V 100Ah slim line lithium Battery deep cycle replace AGM caravan battery
Lithium Iron Phosphate Battery 12V 100Ah
Nominal Voltage 12.8V
Nominal Capacity 100 Ah
Capacity @ 8A 300 min
Energy 1280 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 12.8V | Terminal Type | M8 | |
Nominal Capacity | 100Ah | Weight | 13kg | |
Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 395*110*262mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | 4 PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 150A | Max Charge Current | 100A | |
Peak Current | 500A | Recommended Charge Current | 20A - 50A | |
Discharge pulse current | 700±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
