Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | LP36V100 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 36V | Nominal Capacity: | 100Ah |
---|---|---|---|
Weight: | 30kg | Dimension: | 525*234*220mm |
Current: | Continuous 100A | Peck Current: | 500A /3S |
Case: | Metal Case | ||
High Light: | 100ah 36V Lithium Golf Cart Battery,36V Lithium Golf Cart Battery,36V Lithium Battery For Golf Cart |

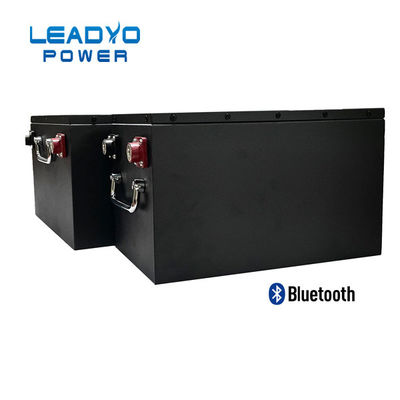

36V Lithium Golf Cart Battery 36v 100ah For AGV Car Golf Cart Lifepo4 Battery
Lithium Iron Phosphate Battery 38.4V 100Ah
Nominal Voltage 38.4V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 3840Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function
Application:boat, Solar home system, golf carts, AGV etc....
Read the battery status On PC/ Cell Phone
Can be read the battery status Throught communication tools (EV2300/EV2400) by PC
Can be read the battery status throught Bluetooth APP by Cell phone/tablet PC
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 38.4V | Terminal Type | M8 | |
Nominal Capacity | 100Ah | Weight | 30kg | |
Nominal Energy | 3840Wh | Case Dimension(L*W*H) | 525*234*220mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
Peak Current | 500A | Recommended Charge Current | 20A - 50A | |
Discharge pulse current | 700±100A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
FAQ
We have successfully designed and produce mode than 2000 types of professional BMS/PCM/ CMB/PCB to 1-32S Battery pack, including over 100 types of BMS with SMBUS ,I2C,bluetooth,RS485, RS232,HDQ...,these high quality products are widely applied to all kinds of battery pack.
