Brand Name: | LEADYO |
Model Number: | LP48V100 |
MOQ: | 1pcs |
Price: | Negotiable |
Packaging Details: | UN3480 Standard Export |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

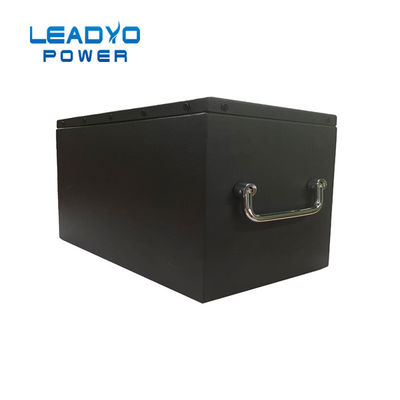

48v 100ah Lifepo4 Battery Pack 2.5kwh 5kwh 10kwh Lithium Ion Battery
Lithium Iron Phosphate Battery 12.8V 100Ah
Nominal Voltage 25.6 V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
1) Steel Case design, Sturdy and Durable.
2) Handle design, easy to carry and install.
3) LCD Display, convenient to check the battery capacity status.
4), Light weight 48V 100Ah around 41kg only
5) With longer lifespan around 10 years.
Custom-made BMS With full over protection ,balancing function and short circuit protection
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 51.2V | Terminal Type | M8 | |
Nominal Capacity | 100Ah | Weight | 42kg | |
Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 550*305*260mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
