Brand Name: | LEADYO |
Model Number: | LP12V200 |
MOQ: | 1pcs |
Price: | Negotiable |
Packaging Details: | UN3480 Standard Export |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

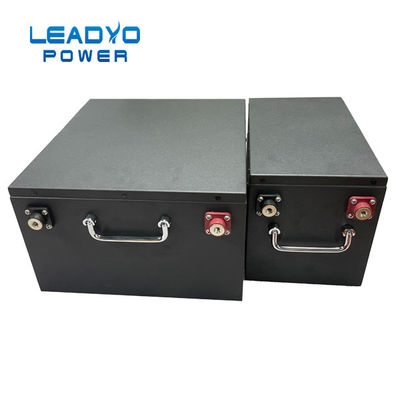

12V lithium iron battery pack 200Ah 12.8V deep cycle RV underseat battery
Lithium Iron Phosphate Battery 12.8V 200Ah
Nominal Voltage 12.8V
Nominal Capacity 200 Ah
Capacity @ 50A 240 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge
scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance
and application advantages compared with conventional battery.
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 12.8V | Terminal Type | M8 | |
Nominal Capacity | 200Ah | Weight |
21kg |
|
Nominal Energy | 2560Wh | Case Dimension(L*W*H) | ||
Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
Capacity | @80A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
Peak Current | 500A | Recommended Charge Current | 60A - 150A | |
Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 & BIS for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
FAQ
![]() |
