Home > products > LiFeO4 Batteries Cell > LiFePO4 Lithium Iron Phosphate Battery 3.2V 140Ah lfp cells

LiFePO4 Lithium Iron Phosphate Battery 3.2V 140Ah lfp cells

Product Details

Place of Origin: CHINA

Certification: UN38.3, CE,MSDS,UKCA

Model Number: 3.2V140Ah

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $60-80/pcs

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: T/T, Western Union ,online

Supply Ability: 1000,000pcs/month

Get Best Price
Highlight:

CATL LiFePO4 Lithium Iron Phosphate Battery

,

Lithium Iron Phosphate Battery 3.2V 140Ah

,

CATL LiFePO4 Battery 3.2V 140Ah

Chemistry:
Lifepo4
Voltage:
3.2V
Capacity:
140Ah
Discharge Current:
1-2C
Charging Current:
0.5C-2C
Peack Current:
3-8C
Processing Terminal Service:
Yes
Chemistry:
Lifepo4
Voltage:
3.2V
Capacity:
140Ah
Discharge Current:
1-2C
Charging Current:
0.5C-2C
Peack Current:
3-8C
Processing Terminal Service:
Yes

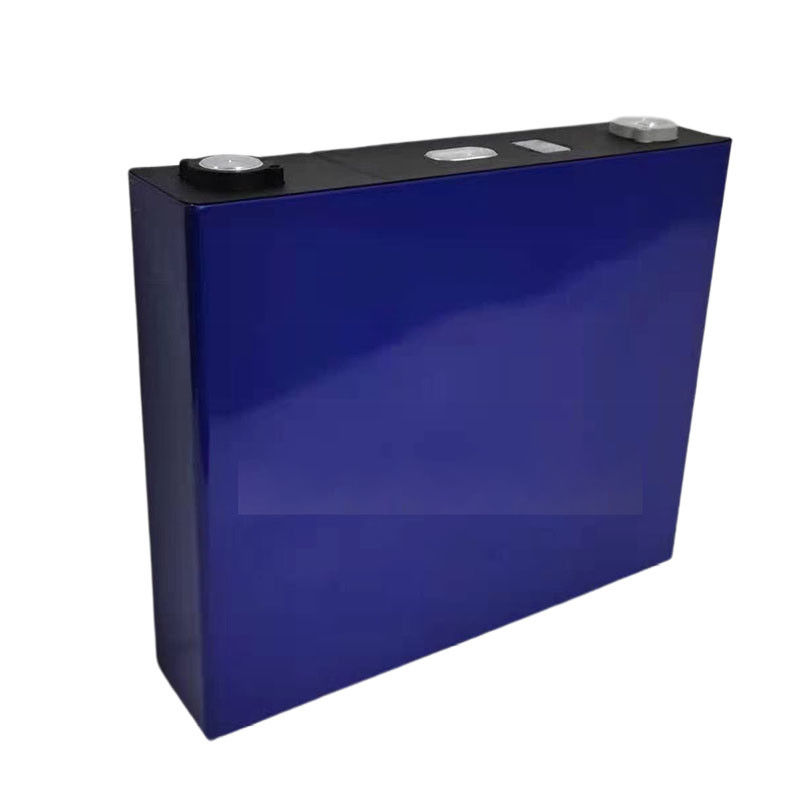

LiFePO4 Lithium Iron Phosphate Battery 3.2V 140Ah lfp cells

 Lithium Iron Phosphate Lifepo4 batteries 3.2v 140ah single cells





Technical Parameters:

No. Items Specifications
1 Nominal Voltage 3.2V
2 Nominal Capacity 140AH
3 Standard Charge Current 0.2C-0.5C
4 Max. Charge Current 1C
5 Continuous Discharge current 80A (1C rate)
6 Peak Discharge Current 2C(160A)
7 Charge Cut-off Voltage 3.65V
8 Discharge Cut-off Voltage 2.0V
9

Inner Resistance

(Impedance)

≤ 0.2mΩ-0.5mΩ (At 0.2C rate, 2.0V cut-off)
10 Weight 3.1Kg
11 Dimensions

W46*L199*H170mm

12 Operating Temperature

Charging: 0°C ~ 45°C

Discharging: -20°C ~ 60°C

(The cell surface temperature cannot exceed 70°C)

13 Storage Temperature/Humidity

Temperature: -10°C ~ +35°C

Humidity:65%±20%RH

(optimal store temperature of 22 ± 5°C for long term storage)

14 Cycle Life ≥3000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)


LiFePO4 Lithium Iron Phosphate Battery 3.2V 140Ah lfp cells 0

LiFePO4 Lithium Iron Phosphate Battery 3.2V 140Ah lfp cells 1





3.2V 20Ah size:22*65*146mm  discharge /charge current :1C
3.2V 50Ah size :27*148*115mm. discharge /charge current :1C
3.2V 90Ah size :27*148*115mm. discharge /charge current :1C
3.2V 105Ah size: 36*130*196mm. discharge/charge current : 1C.
3.2V 140Ah size: 46*199*170mm. discharge/charge current : 1C.
3.2V 200Ah size: 53.7*173.8*207.5. discharge/charge current : 1C.
3.2V 280Ah size:72*173.6*204.8mm. discharge/charge current : 1C



More batteries ,please contact us . thanks .
