Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12V/12.8V |
Nominal Capacity: |
100Ah |
Weight: |
10.5kg |
Dimension: |
260*168*209mm |
Continuous Current: |
100A Max 200A |
Peak Current: |
300A For 5S |
Warranty: |
2 Years |
Function: |
Bluetooth APP |
Nominal Voltage: |
12V/12.8V |
Nominal Capacity: |
100Ah |
Weight: |
10.5kg |
Dimension: |
260*168*209mm |
Continuous Current: |
100A Max 200A |
Peak Current: |
300A For 5S |
Warranty: |
2 Years |
Function: |
Bluetooth APP |

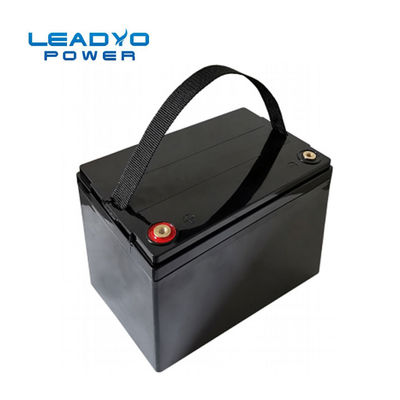

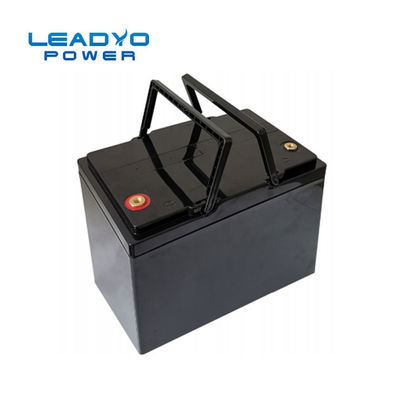

12v lifepo4 battery pack 100Ah 24 group size li ion boat battery
24 Group Size 12V 100Ah LiFePo4 Battery With Bluetooth APP
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 10.5kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 260*168*209mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
