| Brand Name: | LEADYO |
| Model Number: | LP48V100 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

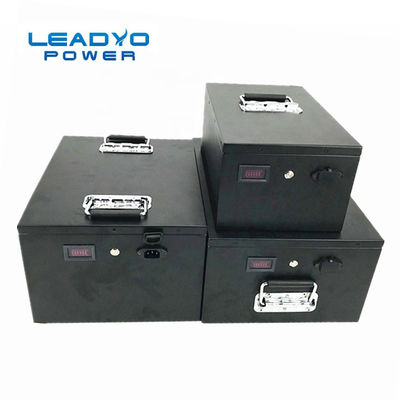

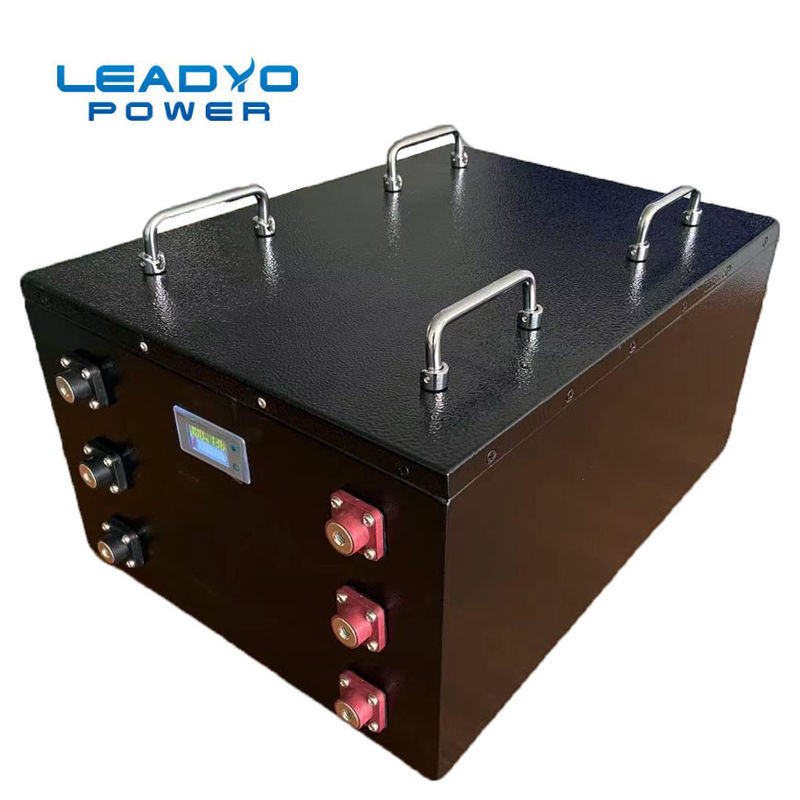

48V 100Ah Lithium Golf Cart Battery Pack For 48V Golf Cart with Metal Case UN38.3 CE MSDS
Leadyo golf carts batteries are designed to replace the lead-acid battery, which are available for drop-in replacement in the Club Car and EZ-GO etc. vehicles nicely. 12-48V series products are lithium-ion battery packs with integrated golf cart battery system.
1) Metal Case design, Sturdy and Durable.
2) Handle design, easy to carry and install.
3) LCD Display, convenient to check the status.
4) Light weight 48V 100Ah around 41kg only
5) With longer lifespan more than 10 years.
SMBUS , I2C ,HDQ ,RS485,RS232 or CANBUS commnication protocol for optional.
Welcome custom size .
More Batteries for optional of golf cart
Datasheet of 48V 100AH Lithium golf cart battery
|
ELECTRICAL SPECIFICATIONS |
MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 41kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 550*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v/ cell | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. Are you factory or trade company?
|
