Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
100Ah |
Weight: |
10.5kg |
Dimension: |
355*175*190mm |
Working Current: |
100A / 150A Continuous |
Series And Parallel: |
Supported |
Charging Voltage: |
14.4-14.6V |
Case: |
Black Screwable ABS Case |
Cycle Life: |
@2000 Cycles @1C 100%DOD |
Welcome: |
OEM/ODM |
Protection: |
BMS |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
100Ah |
Weight: |
10.5kg |
Dimension: |
355*175*190mm |
Working Current: |
100A / 150A Continuous |
Series And Parallel: |
Supported |
Charging Voltage: |
14.4-14.6V |
Case: |
Black Screwable ABS Case |
Cycle Life: |
@2000 Cycles @1C 100%DOD |
Welcome: |
OEM/ODM |
Protection: |
BMS |

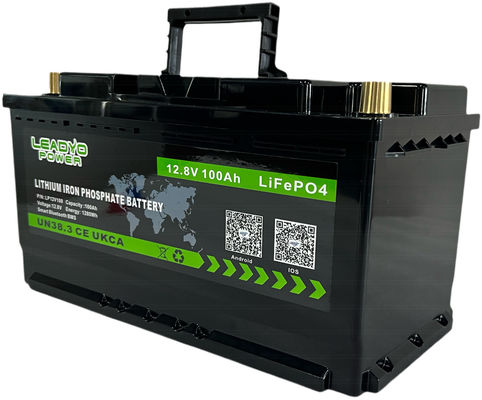

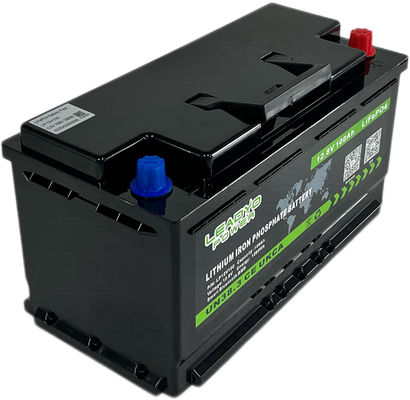

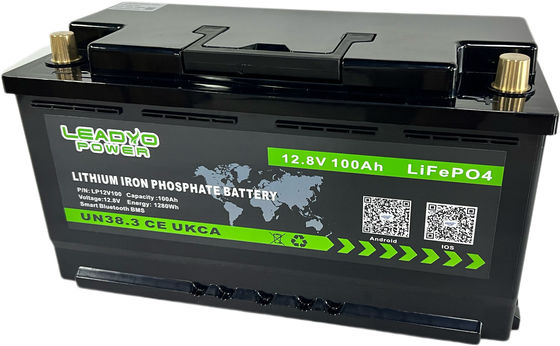

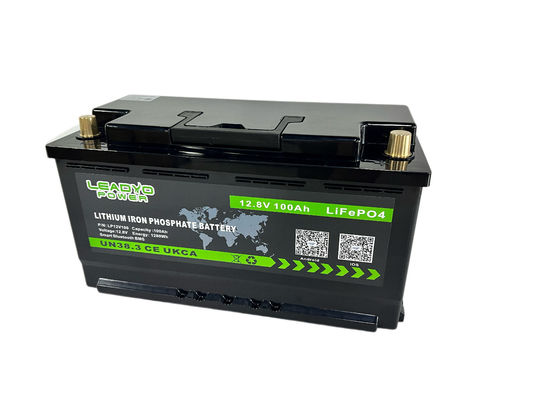

L5 12V 100Ah 100amp LiFePO4 Iron Phosphate Smart Bluetooth Battery With BMS ABS Case
Lithium Iron Phosphate Battery 12V 100Ah
Nominal Voltage 12.8V
Nominal Capacity 100 Ah
Capacity @ 25A 240 min
Energy 1280Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
Sealed LiFePO4 Battery 12.8V 100Ah with full internal protective Battery Management System.
BLUETOOTH PHONE INTERFACE for displaying battery information on your phone!These batteries can also be connected ten in parallel to increased the Amphours or four in series to make 48V.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | Round*2 | |
| Nominal Capacity | 100Ah | Weight | 10.5g | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 355*170*190mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @25A: 240minutes(4hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 500A | Recommended Charge Current | 25A - 60A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
