Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V006 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12V | Nominal Capacity: | 6Ah |
|---|---|---|---|
| G.Weight: | 1.0kg | Size: | 151*65*94mm |
| Work Current: | 6-10A Contonuous | Case: | ABS Case |
| BMS: | With Advanced BMS | ||
| High Light: | Advanced BMS LiFePO4 Battery Pack,12.8V Lithium Iron Phosphate Battery,76.8Wh Lithium Iron Phosphate Battery |
||
12V 6Ah LiFePO4 Battery Pack 12.8V 76.8Wh Lithium Iron Phosphate Battery
Specification Of 12V 6Ah LiFePO4 Battery:
Capacity: 12.8V 6000mAh 76.8Wh.
Build-in battery: 4pcs High Quality LiFePO4 Battery (32700) cells in 4S1P.
Input: 14.6V/6A Max.
Output: Nominal: 12.8V (14.6-9V) /10A Max.
More than 90% of the time, the output voltage is about from 12V to 13V in one of discharge cycle.
Operation temperature range: (0～+60)℃
Storage temperature range: (-10～+50)℃. Recommended long-term storage temperature is (15～25)℃
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | F3 | |
| Nominal Capacity | 6Ah | Weight | 1.0kg | |
| Nominal Energy | 76.8Wh | Case Dimension(L*W*H) | 151*65*94mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @2A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 10A | Max Charge Current | 10A | |
| Peak Current | 20A | Recommended Charge Current | 2A - 3A | |
| Discharge pulse current | 30±5A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

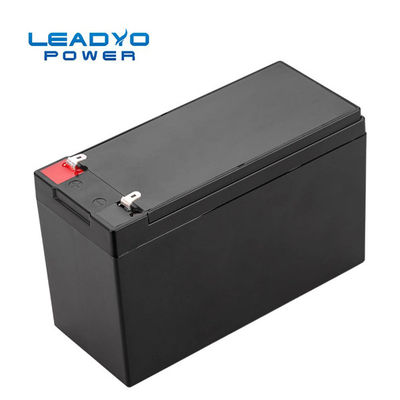

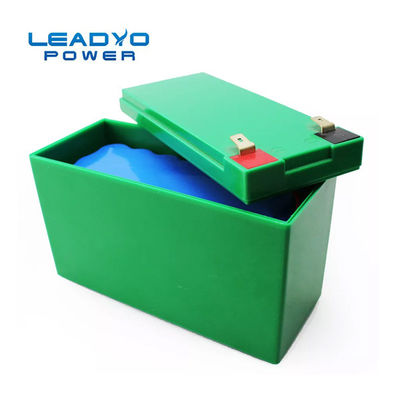

Pictures of 12V 6Ah LiFePO4 Battery Pack:
FAQ Of 12V 6Ah LiFePO4 Battery Pack
Q1: What is the biggest difference between your battery and other suppliers?
A1: Over 10 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;
Q2: What's the Lead time of the battery?
A2: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q3. Is this product safe?
A3: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;
