Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
200Ah |
Weight: |
21kg |
Dimension: |
480*168*240mm |
Continous Current: |
200A |
Series And Parallel: |
Series 4pcs Parallel No Limit |
Case: |
Detachable No Glue Shut Casing |
Ip Rating: |
IP54 |
Display: |
Can Come With Bluetooth Or LCD |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
200Ah |
Weight: |
21kg |
Dimension: |
480*168*240mm |
Continous Current: |
200A |
Series And Parallel: |
Series 4pcs Parallel No Limit |
Case: |
Detachable No Glue Shut Casing |
Ip Rating: |
IP54 |
Display: |
Can Come With Bluetooth Or LCD |

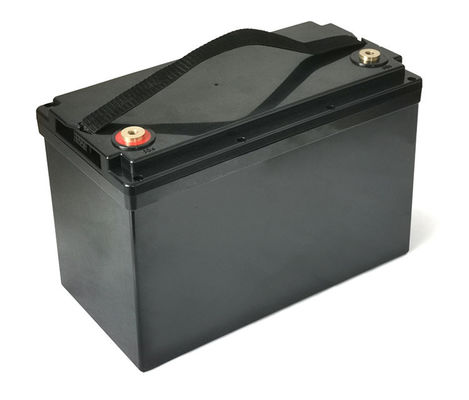

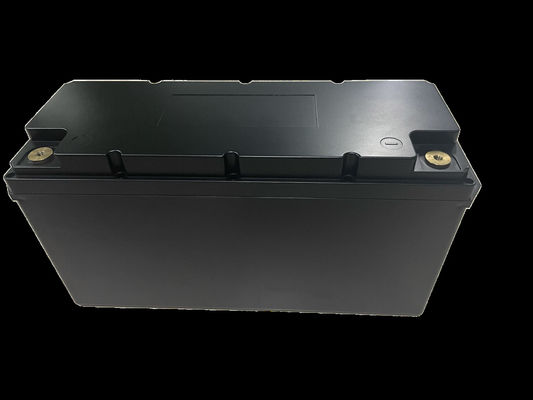

Leadyo Detachable No Glue shut casing lithium lifepo4 Battery 12V 200Ah
Detachable No Glue shut casing lithium lifepo4 12V-48V
-Cylindrical cell or Prismatic cell both Available;
-Continuous current can reach 200A;
-With Bluetooth APP monitoring.;
-Series max up 4pcs, parallel no limit
-Custom your Logo and colors
-With MSDS,UN38.3 UL and CE
Can Customized APP With your Company infomration
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 480*168*240mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS+ Detachable design | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
