Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V105H
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
51.2V |
Nominal Capacity: |
105Ah |
Weight: |
43.6kg |
Dimension: |
472*334*243mm |
Cotinuous Current: |
200A |
Peak Current: |
300A/10S |
Cycles: |
Over 5000 Times |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
105Ah |
Weight: |
43.6kg |
Dimension: |
472*334*243mm |
Cotinuous Current: |
200A |
Peak Current: |
300A/10S |
Cycles: |
Over 5000 Times |

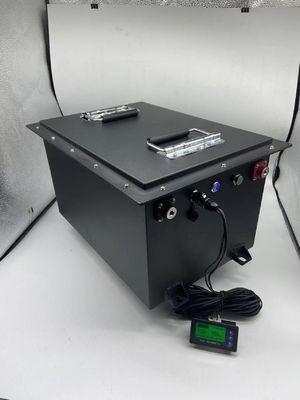

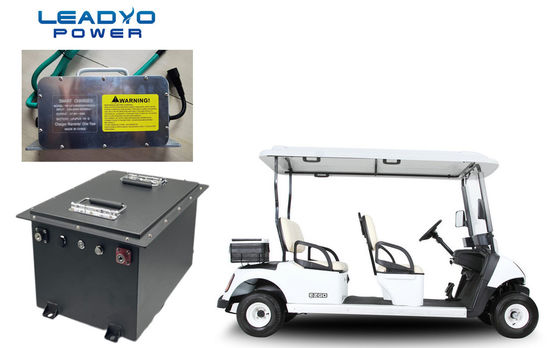

Lihium Golf carts batteries 48V 105Ah lifepo4 lithium ion battery
Detail of Lihium Golf carts batteries
Capacity:48V 105Ah LiFePO4 Battery
Cycle life: >5000 cycles
Dimension: 472*334*243mm / Customized
Nominal Capacity: 105Ah
Charging Voltage:57.6V, 3.6volt
Constant Discharge Current: 25A
Weight: 43.6kg
Battery Type: Lihium Golf carts batteries
Optional: WIth LCD display
OEM/ ODM: Accept OEM / ODM Customize
Certification: UN38.3/MSDS/CE
Description of Lihium Golf carts batteries
Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, Over 5,000 cycles . LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in golf carts,RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
| Model | LP48V050 | LFP48V105 | LP48V200 |
| Nominal Voltage(V) | 51.2 | 51.2 | 51.2 |
| Nominal Capacity(Ah) | 50 | 105 | 200 |
| Usable Capacity(Wh) | 2560 | 5376 | 10240 |
| Dimension(mm) | 472*334*243 | 472*334*243 | 800*400*221 |
| Weight(Kg) | 35 | 43.6 | 95 |
| Cycle Life | ≥5000 @ 25℃ | ≥5000 @ 25℃ | ≥5000 @ 25℃ |
| Working Temperature ℃ | -20~55 | -20~55 | -20~55 |
| Charge Voltage(V) | 57.6 | 57.6 | 57.6 |
| Internal Impedance(mΩ) | ≤20 | ≤10 | ≤10 |
| Charge / Discharge Current (A) | charge:50 | charge:100 | charge:200 |
| discharge:100 | discharge:200 | discharge:200 | |
| Design Life(Years) | 20 | 20 | 20 |
Dimension of Lihium Golf carts batteries
FAQ
Q: what golf carts used of the lithium batteries
A: The battery can use many kinds of golf carts like Yamaha, EaziGo and Club Car etc,and we can customized battery according to your requirmenets
Q: Can you provide charger or not
A: Yes,We also can provide charger to you if you need.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
| 472*334*143 |
