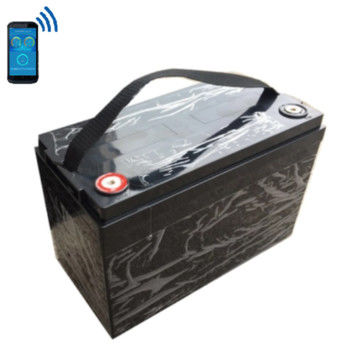

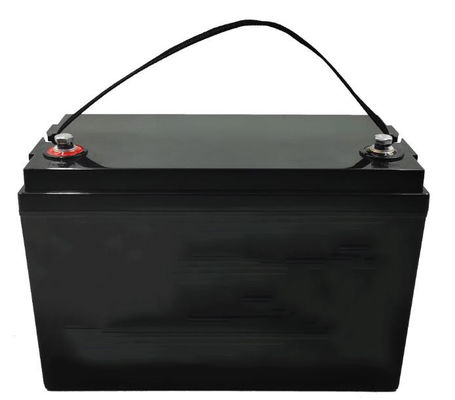

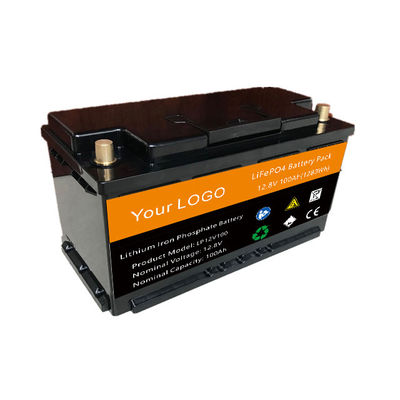

1280Wh Lithium Ion Battery , 12v 100ah Smart BMS Lifepo4 Battery

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP12V100

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: Leadyo 12v Lithium Ion Battery Deep Cycle Lifepo4 12v Rv Battery
Nominal Voltage:
12.8V
Nominal Capacity:
100Ah
Dimension:
330*175*215mm
Continous Current:
200A
Case:
Black Screwable ABS Case
Bluetooth:
Customized Avaible
Series And Parallel:
Support
Nominal Voltage:
12.8V
Nominal Capacity:
100Ah
Dimension:
330*175*215mm
Continous Current:
200A
Case:
Black Screwable ABS Case
Bluetooth:
Customized Avaible
Series And Parallel:
Support
1280Wh Lithium Ion Battery , 12v 100ah Smart BMS Lifepo4 Battery

Lithium ion Battery 12v 100ah 1280Wh Smart BMS Lifepo4 Battery



Lithium Iron Phosphate Battery 12V 100Ah



Nominal Voltage 12.8V

Nominal Capacity 100 Ah

Capacity @ 20A 300 min

Energy 1280 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

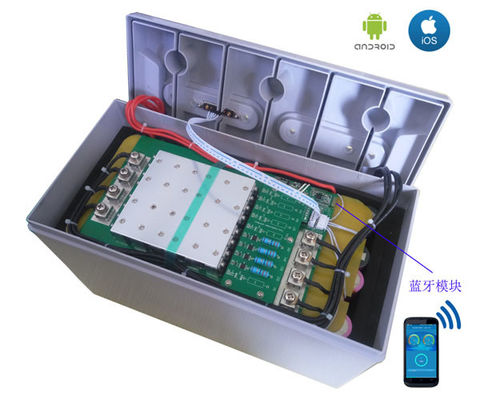

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.



Features:



12V 100Ah LiFePO4 is a lithium iron phosphate battery that offers significant advantages over batteries in other technologies. Thanks to its long lifetime, performance, light weight and sizes it will be perfect as a power source for boats,RV, electric vehicles or in solar installations.

Leadyo 12V Batteries can series up to 48V battery and parallel in unlimit.



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 100Ah   Weight 13kg
Nominal Energy 1280Wh   Case Dimension(L*W*H) 330*175*210mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @24A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series and Parallel 4PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 100A   Max Charge Current 100A
Peak Current 300A   Recommended Charge Current 25A - 60A
Discharge pulse current 500±50A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V   End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 & BIS for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60



1280Wh Lithium Ion Battery , 12v 100ah Smart BMS Lifepo4 Battery 0

FAQ



Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A. Samples need 4-10 days, mass production time needs 2-5weeks, it depends on order quantity.



Q3. Do you have any MOQ limit? A. No, 1pc for sample checking is available, we have MOQ for mass production.

Q4. How do you ship the goods and how long does it take to arrive?



A. It usually takes 5-12 days to arrive. Airfreight and seafreight is also optional.

Q5. How to proceed with an order? A.Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production and then delivery
