| Brand Name: | LEADYO |
| Model Number: | LP12V100 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

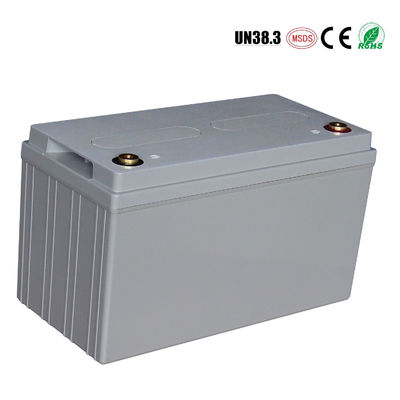

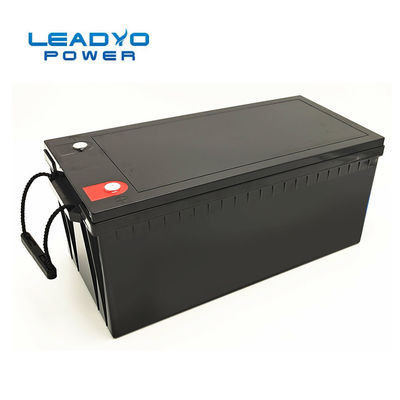

Litium Batteries 12v 100ah 200ah IP66 Bluetooth Lifepo4 Rechargeable Battery

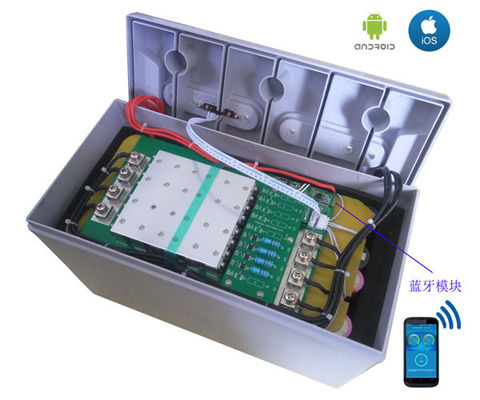

The built in Bluetooth feature enables the monitoring of each battery State-of-Charge (SoC) via a Smartphone APP. The APP displays the Amps currently charging or discharging from the battery at a point in time, the voltage of the battery, SOC %, the temperature of the battery, the time to full charge, the time to full discharge and the number of charge/discharge cycles the battery has incurred.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 13kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 330*175*210mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @24A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 25A - 60A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples need 4-10 days, mass production time needs 2-5weeks, it depends on order quantity.
Q3. Do you have any MOQ limit? A. No, 1pc for sample checking is available, we have MOQ for mass production.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-12 days to arrive. Airfreight and seafreight is also optional.
Q5. How to proceed with an order? A.Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production and then delivery
|
