Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Li-Ion, Lifepo4, LiFePO4 Battery Pack, Lifepo4/lithium Battery/li-ion Battery |
Nominal Voltage: |
12V, 12.8V, 12V |
Nominal Capacity: |
100Ah |
Size: |
330*175*215mm |
Weight: |
13kg |
Continous Current: |
200A |
Case: |
Black Screwable ABS Case |
Bluetooth: |
Customized Avaible |
Type: |
Li-Ion, Lifepo4, LiFePO4 Battery Pack, Lifepo4/lithium Battery/li-ion Battery |
Nominal Voltage: |
12V, 12.8V, 12V |
Nominal Capacity: |
100Ah |
Size: |
330*175*215mm |
Weight: |
13kg |
Continous Current: |
200A |
Case: |
Black Screwable ABS Case |
Bluetooth: |
Customized Avaible |

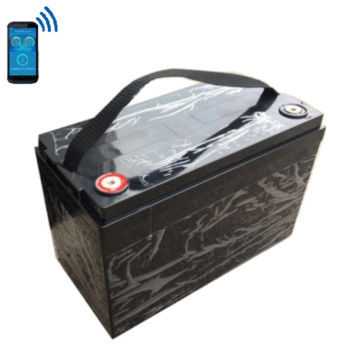

Leadyo Smart BMS Lifepo4 Battery 12V 100ah 1280Wh Black Screwable ABS Case
Lithium Iron Phosphate Battery 12V 100Ah
Nominal Voltage 12.8V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 1280 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function

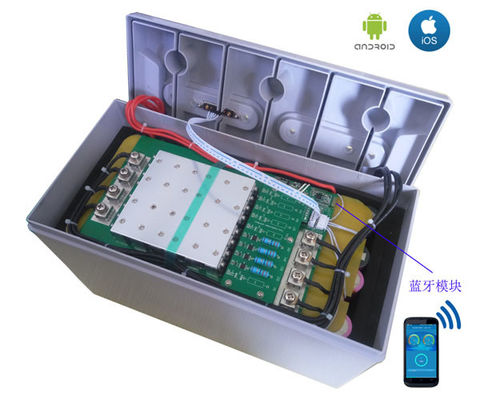

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
12V 100Ah LiFePO4 is a lithium iron phosphate battery that offers significant advantages over batteries in other technologies. Thanks to its long lifetime, performance, light weight and sizes it will be perfect as a power source for boats,RV, electric vehicles or in solar installations.
Leadyo 12V Batteries can series up to 48V battery and parallel in unlimit.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 13kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 330*175*210mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @24A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 25A - 60A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples need 4-10 days, mass production time needs 2-5weeks, it depends on order quantity.
Q3. Do you have any MOQ limit? A. No, 1pc for sample checking is available, we have MOQ for mass production.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-12 days to arrive. Airfreight and seafreight is also optional.
Q5. How to proceed with an order? A.Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production and then delivery
