Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LH12V160
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12V |
Nominal Capacity: |
160Ah |
Weight: |
18kg |
Dimension: |
483*170*240mm |
Peak Current: |
1600A Crank Current /ms |
Function: |
Cranking And Deep Cycle |
Used: |
Trucks /vehicles |
Nominal Voltage: |
12V |
Nominal Capacity: |
160Ah |
Weight: |
18kg |
Dimension: |
483*170*240mm |
Peak Current: |
1600A Crank Current /ms |
Function: |
Cranking And Deep Cycle |
Used: |
Trucks /vehicles |

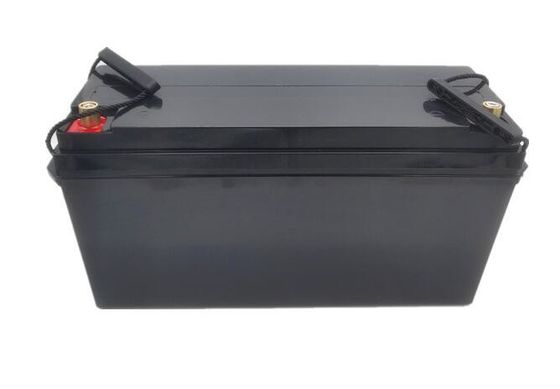

Truck start battery 12V 160Ah 1600A LiFePO4 batteries with ABS CASE
Lithium Iron Phosphate Battery 12V 160Ah CCA 1600A for Truck
Nominal Voltage 12.8V
Nominal Capacity 160 Ah
Capacity @ 50A 240 min
Energy 2048 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features of Truck Start LiFePO4 Battery
With BMS with full protected function
100% Maintenance free
A Plug-and-Play System
Powerful Cars,boat,light turck,SUVs etc....
Dual purpose engine start and deep cycling .
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 160Ah | Weight | 18kg | |
| Nominal Energy | 2048Wh | Case Dimension(L*W*H) | 483*170*240mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @40A: 240 minutes(4hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| CCA | 1600A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 1800±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q: Do you have MOQ ?
A: No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and thebalance before shipment
Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
