| Brand Name: | LEADYO |
| Model Number: | LH12V120 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

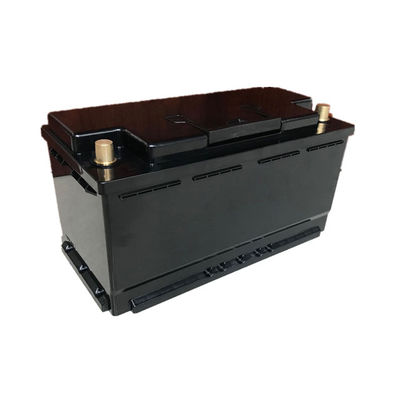

Truck start battery 12V 120Ah LiFePO4 batteries with L5 or Group 31 case
Lithium Iron Phosphate Battery 12V 100Ah CCA 1200A for Truck
Nominal Voltage 12.8V
Nominal Capacity 120 Ah
Capacity @ 20A 300 min
Energy 1536 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features of Truck Start LiFePO4 Battery
With BMS with full protected function
100% Maintenance free
A Plug-and-Play System
Powerful Cars,boat,light turck,SUVs etc....
Dual purpose engine start and deep cycling .
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 120Ah | Weight | 14kg | |
| Nominal Energy | 1536Wh | Case Dimension(L*W*H) | L355*W175*T188mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @40A: 180minutes(3hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| CCA | 1600A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 1800±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q: Do you have MOQ ?
A: No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and thebalance before shipment
Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
|
|
