| Brand Name: | LEADYO |
| Model Number: | LP48V100H |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Electric Golf Cart battery Bluetooth 48V 50Ah 100Ah 150Ah lithium LiFePO4 battery
Features of Golf cart battery
Leadyo power 36V,48V,60V,72V lithium golf cart battery are standard replacements for golf carts with lead acid batteries, lithium battery have 5 times life span than lead acid battery--a life expectancy of 5000 cycle.
Contact us to custom your own golf cart battery packs ,NO MOQ .
Specs of Golf cart battery
| Technical Specification | |||||||
| VOLTAGE CAPACITY | 36V50Ah | 36V100Ah | 48V50Ah | 48V100Ah | 48V105Ah | 48V 200Ah | 72V 100Ah |
| Nominal voltage | 38.4V | 38.4V | 51.2V | 51.2V | 51.2V | 51.2V | 73.6V |
| Nominal capacity | 50Ah | 100Ah | 50Ah | 100Ah | 105Ah | 200Ah | 100Ah |
| Nominal energy | 1920Wh | 3840Wh | 1920Wh | 5120Wh | 5376Wh | 10240Wh | 7360Wh |
| CYCLE LIFE (capacity ≥ 80% of nominal) | |||||||
| 90% DoD | 2000 cycles | ||||||
| 80% DoD | 3000 cycles | ||||||
| 50% DoD | 6000 cycles | ||||||
| CHARGE | |||||||
| Charge voltage | 43.2V | 43.2V | 57.6V | 57.6V | 57.6V | 57.6V | 82.8V |
| Maximum continuous charge current |
50A | 100A | 50A | 100A | 100A | 200A | 100A |
| Recommended continuous charge current |
>25A | >50A | >25A | >50A | >50A | >100A | >50A |
| DISCHARGE | |||||||
| Maximum continuous discharge current |
100A | 200A | 100A | 200A | 200A | 200A | 150A |
| End of discharge voltage | 30V | 30V | 40V | 40V | 40V | 40V | 60V |
| OPERATING CONDITIONS | |||||||
| Operating temperature | Discharge: -20°C to +60°C Charge: +0°C to +45°C | ||||||
| Storage temperature | -45°C to +70°C | ||||||
| Humidity (non-condensing) | Max. 95% | ||||||
| Protection class | Steel Case | ||||||
| Other | |||||||
| Type Of Case | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Terminal | M8 | M8 | M8 | M8 | M8 | M8 | M8 |
| Dimension (mm) | 385*338*245 | 385*338*245 | 472*334*247 | 472*334*247 | 472*334*247 | 840*270*295 | 740*320*250 |
| Weight (kg) | 27 | 24 | 35 | 43.6 | 43.6 | 95 | 64 |

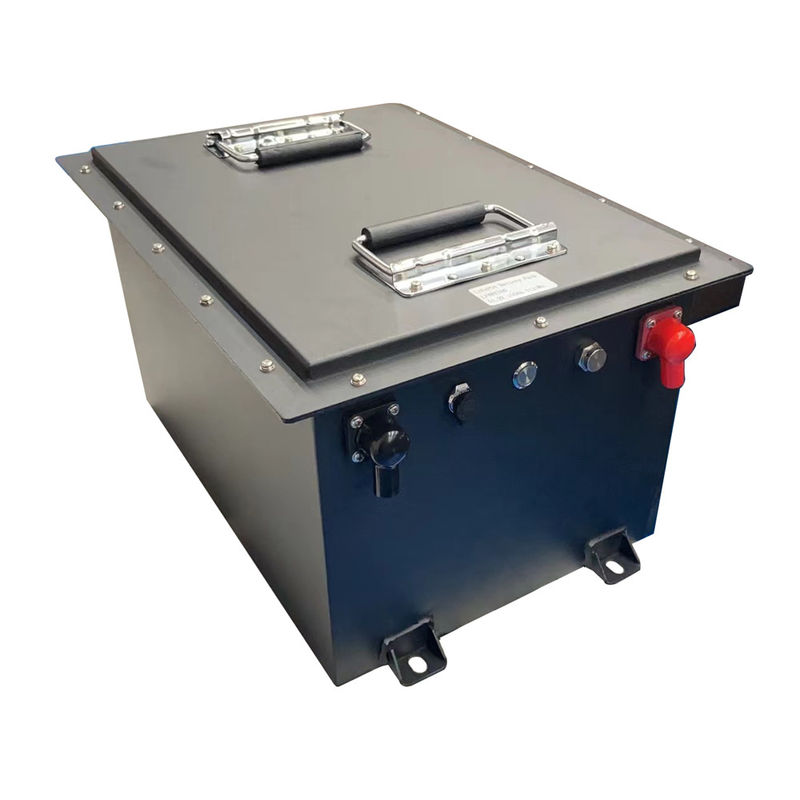

Picture of Golf cart battery
We aslo can provide battery charger,and the battery kit can suitable most of golf carts like Yamaha EZGO Club Car etc.
FAQ
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 10-15 days
Q: Can we customized sizes and capacity?
A: Yes,Can customized according to your requirements no MOQ required.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
|
