Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Li-Ion, Lifepo4, LiFePO4 Battery Pack, Lifepo4/lithium Battery/li-ion Battery |
Size: |
330*175*215mm |
Cycle Life: |
5000 Times |
Weight: |
13kg |
Nominal Voltage: |
12V, 12.8V, 12V |
Connected: |
Series And Parallel |
Case: |
ABS Case |
Bluetooth: |
Customized Avaible |
Type: |
Li-Ion, Lifepo4, LiFePO4 Battery Pack, Lifepo4/lithium Battery/li-ion Battery |
Size: |
330*175*215mm |
Cycle Life: |
5000 Times |
Weight: |
13kg |
Nominal Voltage: |
12V, 12.8V, 12V |
Connected: |
Series And Parallel |
Case: |
ABS Case |
Bluetooth: |
Customized Avaible |

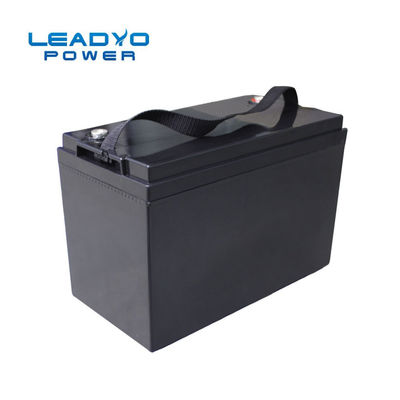

Lifepo4 Batteries Rechargeable Lithium Battery 12v 100ah 5000 Times Long Life Cycle
12.8V100Ah LiFePO4 Battery
This 12.8V 100Ah LFP battery can be perfect substitution to AGM/GEL battery, PKE also provides customized batteries with different capacity, dimension and functions according to customer's specific requirements.
Comparing with AGM/GEL lead acid batteries, PKE Li-ion (LiFePO4) substitution solutions has the following advantages:
1. Long life: LiFePO4 battery has a long life cycle which is more than 5000 times and its life span is up to 10 years.
2. Light in weight: Li-ion (LiFePO4) substitution battery is only approx. 1/3 of lead acid battery in weight.
3. Deep discharge: the power supplied by LiFePO4 is 25% higher than the power supplied by AGM/GEL lead acid battery with same capacity.
4. Wide working temperature: LiFePO4 battery has wide working temperature range of -20°C ~ 60°C.
5. Environmental friendly: LiFePO4 does not contain any harmful heavy metal elements, it is green, non-toxic, pollution-free.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 13kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 330*175*210mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @24A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ |
|
||
