| Brand Name: | LEADYO |
| Model Number: | LP12V8 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

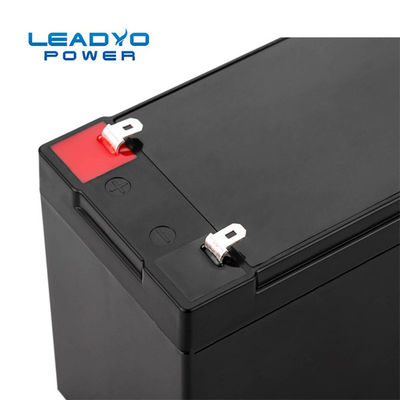

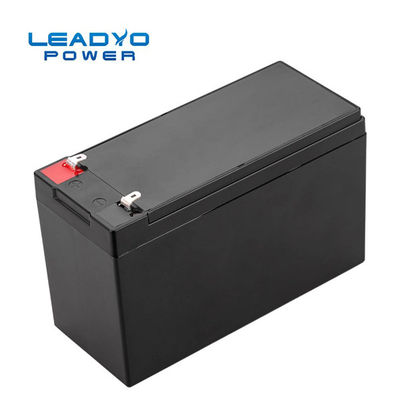

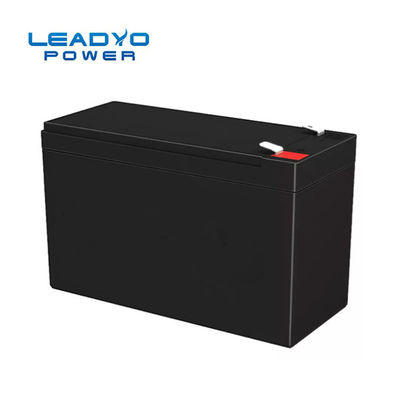

12v8ah lifepo4 batteries 12v battery lithium ion battery backup with BMS
Product Description of 12V 8Ah LiFePO4 Battery :
Built in Battery Protection
Every Smart Battery comes with a built in battery protection system designed to protect and maintain the battery.
Excellent discharge characteristics
Have low internal resistance and high flat voltage characteristics during strong current discharge, which ensures a wider application field.
100% Depth of Discharge (DOD)
Smart Battery Lithium Ion Batteries can be discharged to 100% of the rated capacity.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | F3 | |
| Nominal Capacity | 6Ah | Weight | 1.0kg | |
| Nominal Energy | 76.8Wh | Case Dimension(L*W*H) | 151*65*94mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @2A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 10A | Max Charge Current | 10A | |
| Peak Current | 20A | Recommended Charge Current | 2A - 3A | |
| Discharge pulse current | 30±5A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How long of the shipping time?
It always needs 3-10 days by express such as DHL and UPS, 20-30 days by sea.
4. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided.
|
|
