Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V50
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Lifepo4 Battery Pack,lithium Battery ,lithium Iron Phosphate Battery |
Size: |
197*166*168mm |
Cycle Life: |
5000 Times |
Weight: |
6.8kg |
Nominal Voltage: |
12V, 12.8V, 12V |
Connected: |
Series And Parallel |
Case: |
Screwable Case |
Type: |
Lifepo4 Battery Pack,lithium Battery ,lithium Iron Phosphate Battery |
Size: |
197*166*168mm |
Cycle Life: |
5000 Times |
Weight: |
6.8kg |
Nominal Voltage: |
12V, 12.8V, 12V |
Connected: |
Series And Parallel |
Case: |
Screwable Case |

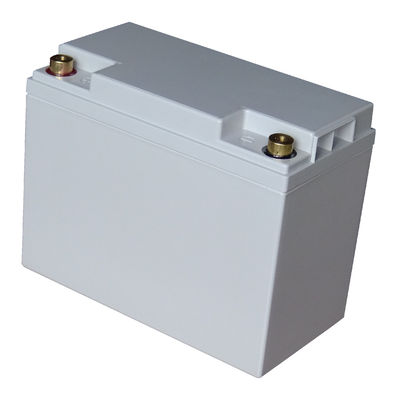

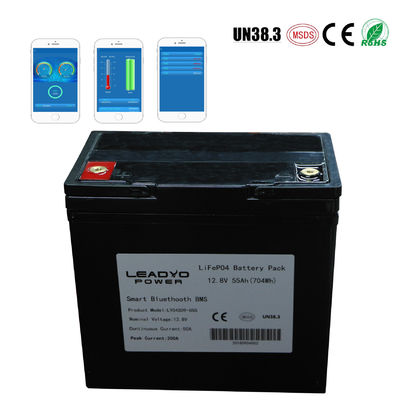

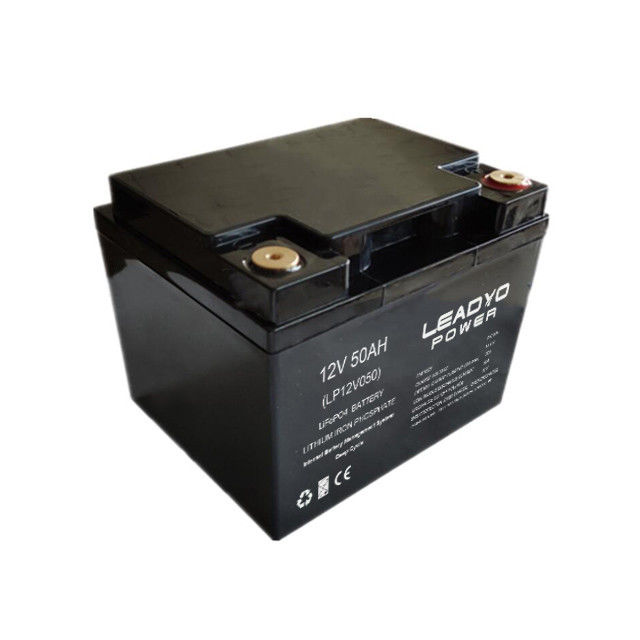

rechargeable deep cycle batteries 12V 50ah screwable case lithium batteries for rv
Features of LiFePO4 Battery:
- Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
- Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
- Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
- Wider Temperature Range: -20 C~60 C.
- Increased Flexibility: Modular design enables deployment of up to four batteries in series and max ten batteries in parallel.
Application:
- Electric vehicles, electric mobility
- Solar/wind energy storage system
- UPS, backup power
- Telecommunication
- Medical equipment
- Lighting
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M6 | |
| Nominal Capacity | 50Ah | Weight | 6.8kg | |
| Nominal Energy | 640Wh | Case Dimension(L*W*H) | 197*166*168mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @25A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 150A | Recommended Charge Current | 10A - 20A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
