| Brand Name: | LEADYO |
| Model Number: | LP12V100 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
12v lithium ion rechargeable battery 100Ah 120Ah for off road camper trailer
Our Advantages:
We are one stop solution manufacturer,we use our self-developed custom -made BMS ,Our BMS Technology (powered by Texas structure US or Seiko Japan) is designed for our battery. Together with our class a batteries (China Leading brand Cells ),Most customers choose our battery packs because our internal process is perfect, humanized, safe and our Advanced BMS system.we ensure that you have a good quality and competitive price.
Specs Of the 12v lithium ion rechargeable battery
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | Car Terminals | |
| Nominal Capacity | 100Ah | Weight | 10.5kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | L355xW175xH188mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS+ Screwable design | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 20A - 100A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

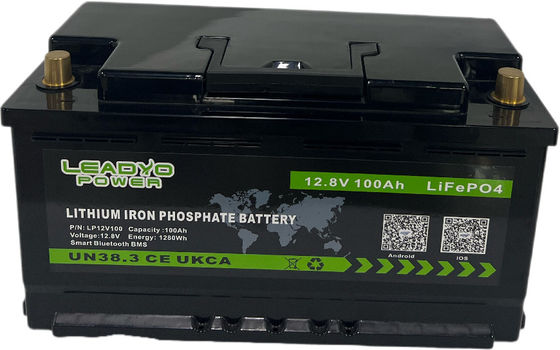

Pictures Of the 12v lithium ion rechargeable battery
Bluetooth APP Of the 12v lithium ion rechargeable battery
Applications Of the 12v lithium ion rechargeable battery
FAQ Of the 12v lithium ion rechargeable battery
|
