| Brand Name: | LEADYO |
| Model Number: | LP48V100 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

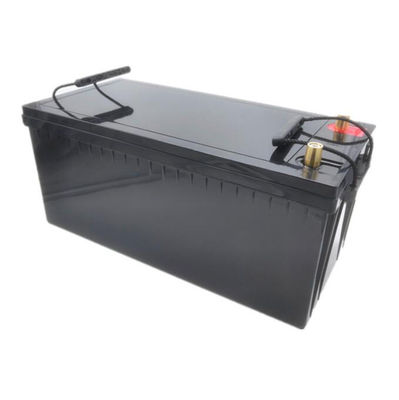

Lightweight 48V 100Ah 105Ah Lithium LiFePo4 Battery electric golf cart batteries
Features of electric golf cart batteries
Specs of electric golf cart batteries
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 38kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 520*267*220MM | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

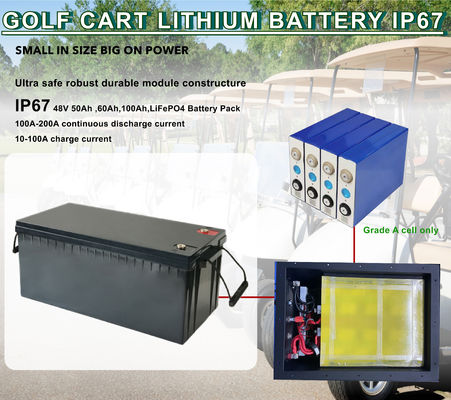

Internal construct pictures of 48V lifepo4 golf cart battery
Smart BMS protections Features of LiFePO4 Golf Cart Battery
Battery Charger of electric golf cart batteries
FAQ of electric golf cart batteries
Q: Is there have other sizes of the battery?
A: Yes, sure, we also have 36V 48V 60V 72V 30Ah 50Ah 100Ah 150Ah 200Ah sizes.
Q: Can i get samll quantity for test? and could you delivery to my address?
A: Yes,sure.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you factory?
A: Yes sure, we are factory, and we enaged in lithiium battery pack production over 10years.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
|
