Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,IEC26133
Model Number: LP48V100
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 10-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
51.2V |
Nominal Capacity: |
50Ah |
Weight: |
21kg |
Dimension: |
520*230*220MM |
Battery Power: |
5kw |
Bluetooth: |
Yes |
Warranty: |
3 Years |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
50Ah |
Weight: |
21kg |
Dimension: |
520*230*220MM |
Battery Power: |
5kw |
Bluetooth: |
Yes |
Warranty: |
3 Years |
36V 48V 50Ah 100Ah battery 10KW Motor lithium ion golf cart batteries
Features of lithium ion golf cart batteries
Specs of lithium ion golf cart batteries
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 50Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 520*230*220MM | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | 12PCS | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| Peak Current | 300A | Recommended Charge Current | 10A - 25A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

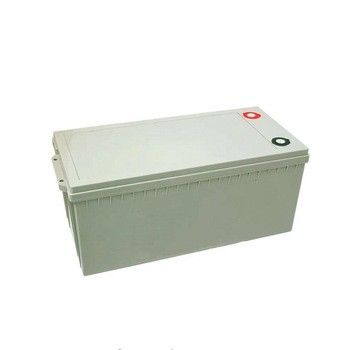

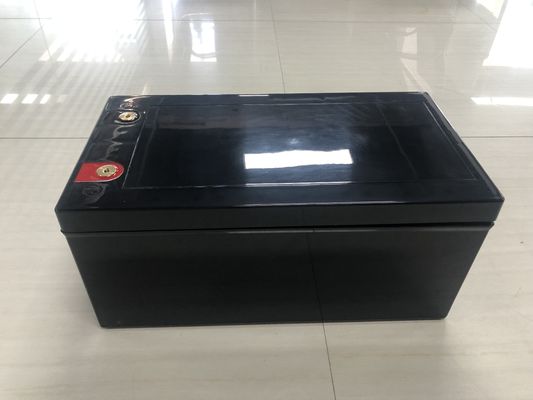

Pictures of lithium ion golf cart batteries
Bluetooth APP of lithium ion golf cart batteries
FAQ of lithium ion golf cart batteries
Q: Have you have other models for the golf carts
A: Yes, sure, we also have 36V 48V 60V 72V 30Ah 50Ah 100Ah 150Ah 200Ah sizes.and we also can customzied according to your requirements.
Q: Can you provide battery charger together?
A: Yes,we will recommend charger for each battery.
Q: Do you have your own brand? can i sell your brand directly?
A: Yes,sure,you can sell our brand, we also can provide OEM services for you.
Q:Are you factory?
A: Yes sure, we are factory, and we enaged in lithiium battery pack production over 10years.
Q: What kind of certificates do you have?
A: We can provide CE,IEC62133,MSDS,UN38.3 etc....
