Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V60
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Lifepo4 Battery Pack,lithium Battery ,lithium Iron Phosphate Battery,starting Battery ,lithium Cranking Batteries |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
80Ah |
Energy: |
1024Wh |
Weight: |
10kg |
Dimension: |
L280*W175*H89mm |
CCA: |
1200CCA |
Type: |
Lifepo4 Battery Pack,lithium Battery ,lithium Iron Phosphate Battery,starting Battery ,lithium Cranking Batteries |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
80Ah |
Energy: |
1024Wh |
Weight: |
10kg |
Dimension: |
L280*W175*H89mm |
CCA: |
1200CCA |

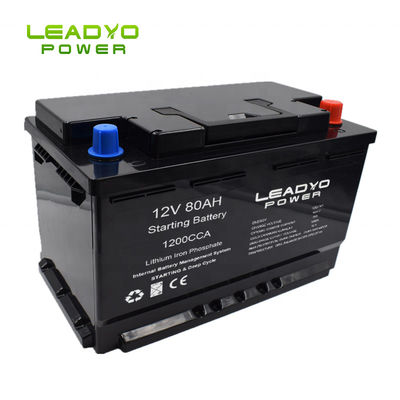

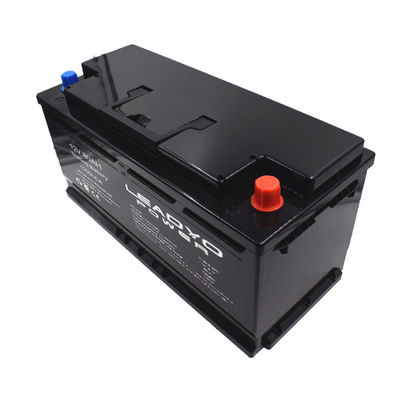

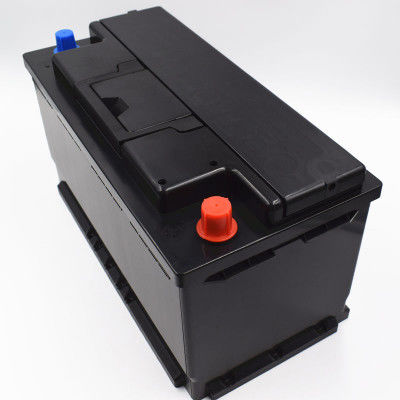

Lithium Starting Battery 12V 80Ah 1200CCA LiFePO4 Starter Battery for Automobile Car Marine
Lithium Iron Phosphate Battery 12V 80Ah
Nominal Voltage 12.8V
Nominal Capacity 80 Ah
Energy 1024 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features:
Light weight 12.8V LifePO4 Start -Stop High Performance LifePO4 battery which is replacement AGM Batteries.This battery features 200-1,600 Crank Amps and will have no trouble starting most conventional engines on the market today.
Higher Performance LifePO4 battery
100% Maintenance free
With Different sizes
Dual purpose engine start and deep cycling
Powerful Cars,boat,light turck,SUVs etc....
Support to provide the BLE APP with customer LOGO or custom APP.
Lithium Iron Phosphate(LiFePO4) is the safest type of lithium battery and a ready to go replacement and updrade from lead acid, AGM or gel.
Starting batteries, also known as Cranking batteries, are what start your car, boat or motorcycle’s engine. They’re designed to deliver a burst of power for a short amount of time. Cranking batteries can be recharged from the engine's alternator or from a charger.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 80Ah | Weight | 10kg | |
| Nominal Energy | 1024Wh | Case Dimension(L*W*H) | L280xW175xH189mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| CCA | 1200A | Recommended Charge Current | 15A - 30A | |
| Discharge pulse current | 1200±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
More models
| Voltage | Capacity | CCA | Weight | Dimension |
| 12V | 20Ah | 400A | 3kg | L244*W176*H197mm |
| 12V | 40Ah | 600-800A | 5kg | L244*W176*H197mm |
| 12V | 60Ah | 800-1000A | 7kg | L278*W176*H172mm |
| 12V | 80Ah | 1200A | 10kg | L280xW175xH189mm |
| 12V | 100Ah | 1200A | 13kg | L355xW175xH188mm |
| 12V | 120Ah | 1600A | 16kg | L398xW175xH188mm |
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more starting lifepo4 battery?
Yes.
Crank Amps Optional : 200/400/600/800/1000/1200/1600CCA
Current Optional : 20Ah/40Ah/60Ah/80Ah/100Ah/120Ah
Group size optional : 24' 27' 31' 34'
6.How to get a quote?
Please contact with us sales6@leadyo-battery.com
